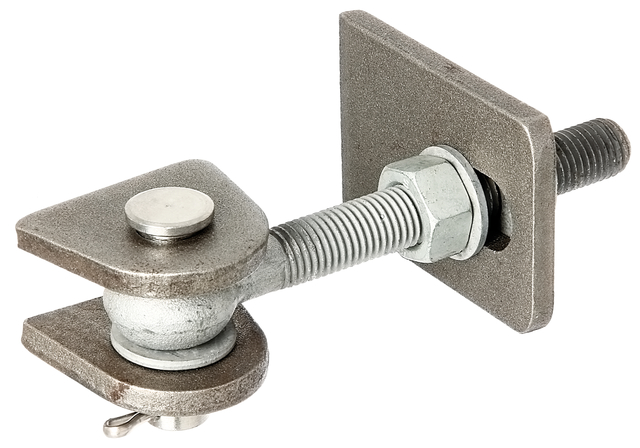

• Gate hinge for 180° opening, short version, Material: weld-on parts: raw steel, bolt and splint: stainless steel, Surface: screws and nuts: hot-dip galvanised, Length of weld-on strip: 86 mm, Distance weld-on plates: 23 mm, Width of weld-on plate: 55 mm, Length of eye bolt: 130 mm, Distance centre pin - end of weld-on plate: 28 mm, Height of weld-on part: 50 mm, Thread: M16
  • Gate hinge for 180° opening, short version, Material: weld-on parts: raw steel, bolt and splint: stainless steel, Surface: screws and nuts: hot-dip galvanised, Length of weld-on strip: 86 mm, Distance weld-on plates: 23 mm, Width of weld-on plate: 55 mm, Length of eye bolt: 130 mm, Distance centre pin - end of weld-on plate: 28 mm, Height of weld-on part: 50 mm, Thread: M16

Gate hinge for 180° opening

short version
Art.-No. 417819

weld-on parts: raw steel, bolt and splint: stainless steel, screws and nuts: hot-dip galvanised

8 Variants
Dimension a:
86 mm
Dimension b:
23 mm
Dimension c:
55 mm
Dimension d:
130 mm
Dimension e:
28 mm
Dimension f:
50 mm
Thread:
M16
Material/surface:
weld-on parts: raw steel, bolt and splint: stainless steel, screws and nuts: hot-dip galvanised
UNIT:
1
PU:
Piece
:
86 mm
:
55 mm
Weight per UQ (kg):
0.79 kg
  • adjustable width
