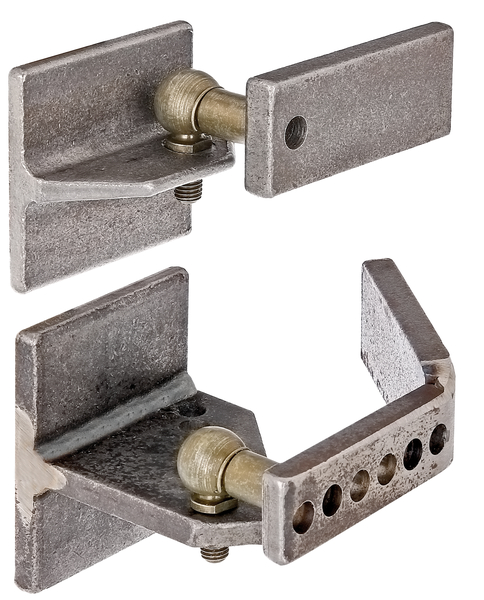

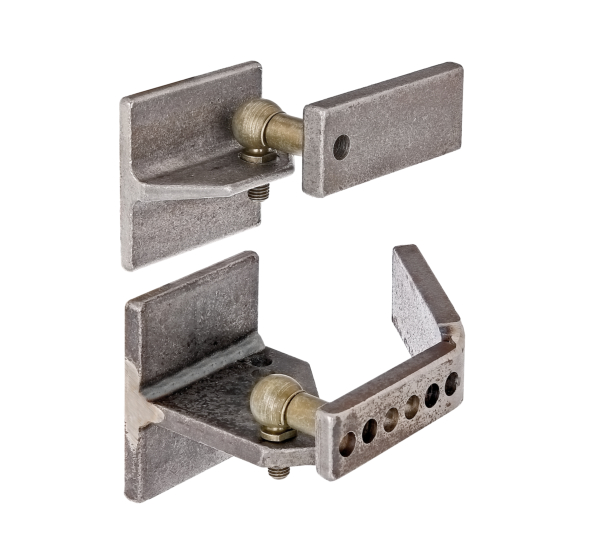

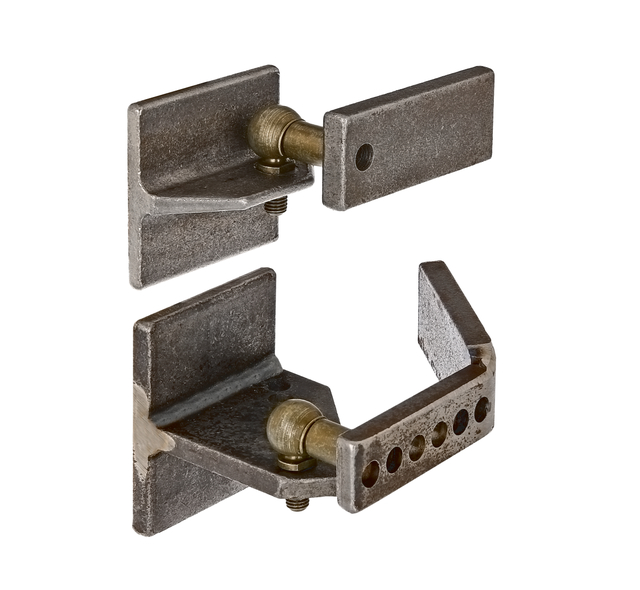

Lifting gate fitting for metal gates

for uneven terrain
Art.-No. 411725

fittings: raw steel, ball angle joint and fastening material: galvanised, for welding on

Material/surface:
fittings: raw steel, ball angle joint and fastening material: galvanised, for welding on
Weight per UQ (kg):
2.7 kg
Content Unit:
1 Cardboard
  • applicable DIN left and right
  • max. load: 100 kg at 2.50 m width of the gate wings
  • the gate can open more than 90°
  • The gate rises when opened. The incline (up to 7°) can be adjusted at different positions and depends on the size of the gate.
  • A square post at least 80 mm wide is required for assembly.
  • A set for one gate leaf contains: one upper and one lower Weld-on hinges, two weld-on plates, two ball-and-socket joints, greased, galvanized, fixing screws and installation instructions. Packed in a polybag.
