• Ovado Barrel bolt with knob handle, with spring, with countersunk screw holes, Material: steel, Surface: galvanised, graphite grey powder-coated, Plate length: 40 mm, Plate width: 75 mm, Bolt-Ø: 9 mm, Loop width: 19 mm, Loop length: 51 mm, No. of holes: 8, Hole: Ø4.5 mm
  • Ovado Barrel bolt with knob handle, with spring, with countersunk screw holes, Material: steel, Surface: galvanised, graphite grey powder-coated, Plate length: 40 mm, Plate width: 75 mm, Bolt-Ø: 9 mm, Loop width: 19 mm, Loop length: 51 mm, No. of holes: 8, Hole: Ø4.5 mm

Ovado Barrel bolt with knob handle

with countersunk screw holes
Art.-No. 128913

steel, galvanised, graphite grey powder-coated

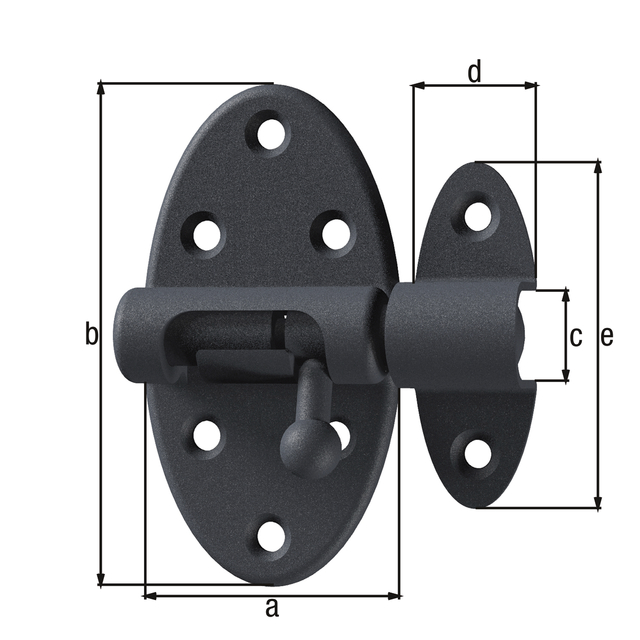

Dimension a:
40 mm
Dimension b:
75 mm
Dimension c-Ø:
9 mm
Dimension d:
19 mm
Dimension e:
51 mm
Quantity x hole Ø:
8 x Ø4.5 mm
Material/surface:
steel, galvanised, graphite grey powder-coated
Systems:
Bolts
Surface / Colour:
grey
Material:
Steel
Plate width:
75 mm
Plate length:
40 mm
Bolt Ø:
9 mm
Weight per UQ (kg):
0.071 kg
Content Unit:
5 Piece
  • When closed, the locked head prevents undesirable loosening due to vibration.
