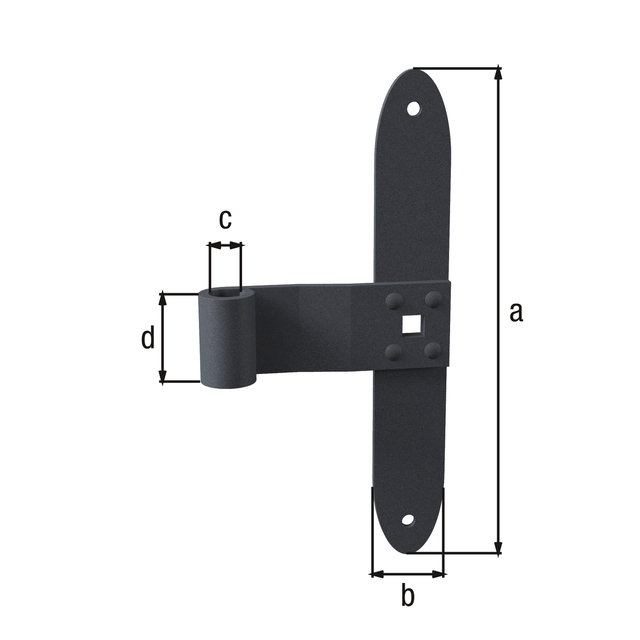

Ovado Window shutter middle hinge, straight, rounded

Art.-No. 313531

steel, galvanised, graphite grey powder-coated

Dimension a:
200 mm
Dimension b:
30 mm
Dimension c-Ø:
13 mm
Dimension d:
35 mm
Fastening type:
ZAUFSCHR
Material thickness:
3 mm
Quantity x hole Ø:
2 x Ø5.5 mm
Quantity x hole (LxW):
1 x ( 9 x 9 ) mm
Material/surface:
steel, galvanised, graphite grey powder-coated
UNIT:
5
PU:
Piece
Surface / Colour:
GRAU
Material:
Steel
:
13 mm
:
30 mm
:
200 mm
Weight per UQ (kg):
0.272 kg
