• U post support, Material: stainless steel, for screwing on, Clear width: 71 mm, Height: 200 mm, Depth of screw-on plate: 60 mm, Beam depth: 50 mm, Length of screw-mounting plate: 200 mm, Material thickness: 4.00 mm, No. of holes: 6, Hole: Ø11 mm
  • U post support, Material: stainless steel, for screwing on, Clear width: 71 mm, Height: 200 mm, Depth of screw-on plate: 60 mm, Beam depth: 50 mm, Length of screw-mounting plate: 200 mm, Material thickness: 4.00 mm, No. of holes: 6, Hole: Ø11 mm

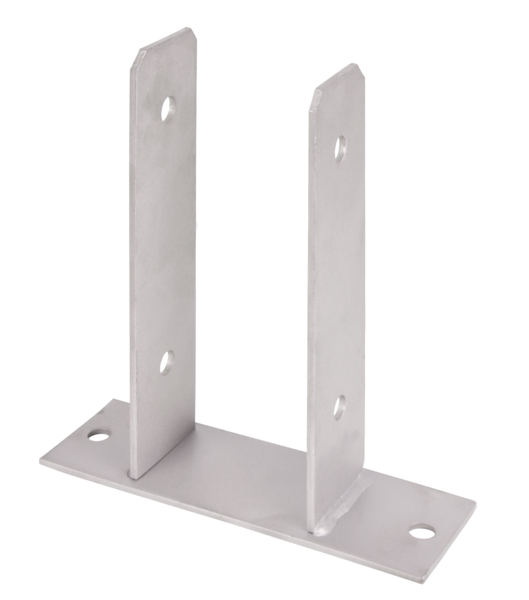

U post support

Art.-No. 212902

stainless steel, for screwing on

2 Variants

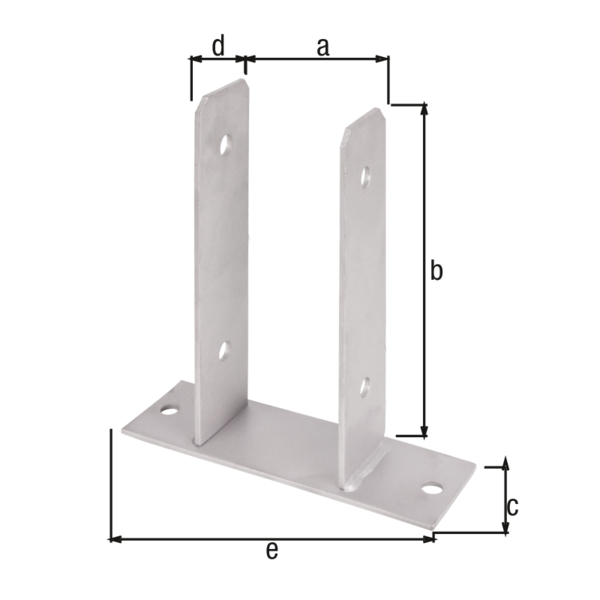

Dimension a:
71 mm
Dimension b:
200 mm
Dimension c:
60 mm
Dimension d:
50 mm
Dimension e:
200 mm
Fastening type:
ZAUFSCHR
Material thickness:
4 mm
Quantity x hole Ø:
6 x Ø11 mm
Material/surface:
stainless steel, for screwing on
UNIT:
1
PU:
Piece
Material:
Stainless steel
:
71 mm
:
200 mm
:
60 mm
Weight per UQ (kg):
0.980 kg
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.212902
Dimension a71 mm
Dimension b200 mm
Dimension c60 mm
Dimension d50 mm
Article-No.212919
Dimension a91 mm
Dimension b200 mm
Dimension c60 mm
Dimension d50 mm
  • Statically suitable for lattice, plank, and lath fences up to 1800 mm for light pergolas. Suitable for timber construction and wooden fences as per the standard value table.
  • Suitable fasteners can be found in the range “Screws and accessories”.
