• U post support, type: width adjustable, Material: raw steel, Surface: galvanised, thick-film passivated, for screwing on, Clear width: 71 - 131 mm, Height: 110 mm, 70 mm, Depth: 70 mm, Plate length: 100 mm, Rippled steel Ø: 19 mm, Material thickness: 5.00 mm, No. of holes: 10, Hole: Ø11 mm
  • U post support, type: width adjustable, Material: raw steel, Surface: galvanised, thick-film passivated, for screwing on, Clear width: 71 - 131 mm, Height: 110 mm, 70 mm, Depth: 70 mm, Plate length: 100 mm, Rippled steel Ø: 19 mm, Material thickness: 5.00 mm, No. of holes: 10, Hole: Ø11 mm

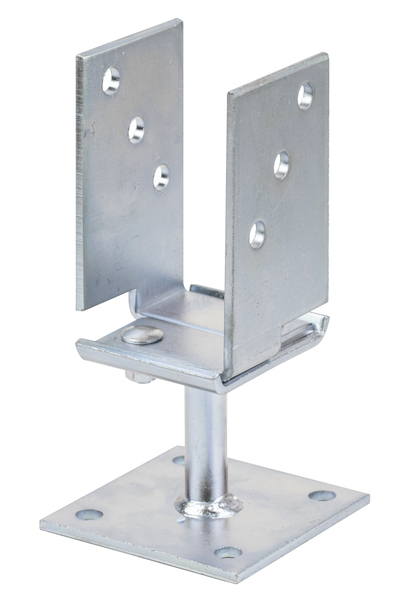

U post support

type: width adjustable
Art.-No. 214500

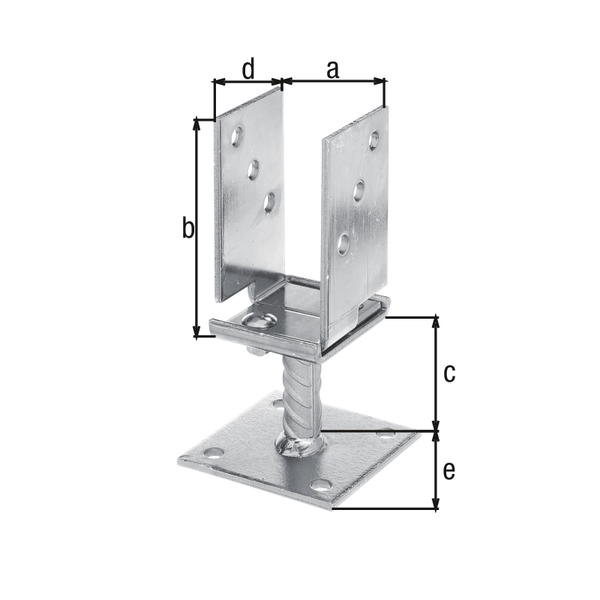

Dimension a:
71 - 131 mm
Dimension b:
110 mm
Dimension c:
70 mm
Dimension d:
70 mm
Dimension e:
100 mm
Distance from ground:
90 mm
Fastening type:
ZAUFSCHR
Material thickness:
5 mm
Rippled steel Ø:
19 mm
Quantity x hole Ø:
10 x Ø11 mm
Material/surface:
raw steel, galvanised, thick-film passivated, for screwing on
UNIT:
1
PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
:
110 mm
:
70 mm
:
71 - 131 mm
Weight per UQ (kg):
1.540 kg

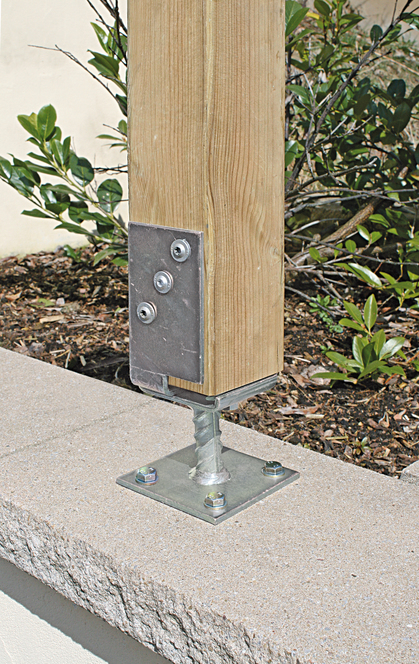

  • for wooden posts thicknesses from 71 to 131 mm
  • Not statically suitable for high wooden and privacy fences.
  • Suitable fasteners can be found in the range “Screws and accessories”.
