• U post support, Material: raw steel, Surface: hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210, Clear width: 71 mm, Total height: 150 mm, Single stand height: 100 mm, Depth: 60 mm, Material thickness: 4.00 mm, No. of holes: 8 / 1, Hole: Ø11 / Ø14 mm
  • U post support, Material: raw steel, Surface: hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210, Clear width: 71 mm, Total height: 150 mm, Single stand height: 100 mm, Depth: 60 mm, Material thickness: 4.00 mm, No. of holes: 8 / 1, Hole: Ø11 / Ø14 mm

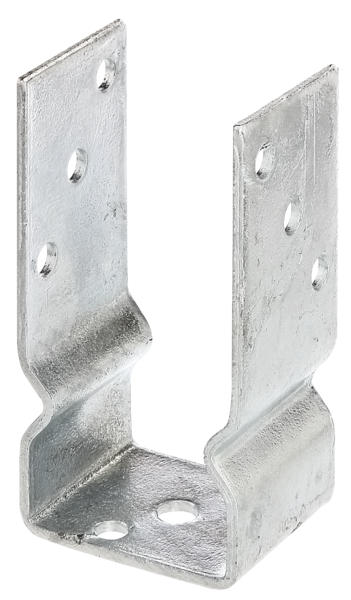

U post support

Art.-No. 217600

raw steel, hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210

5 Variants

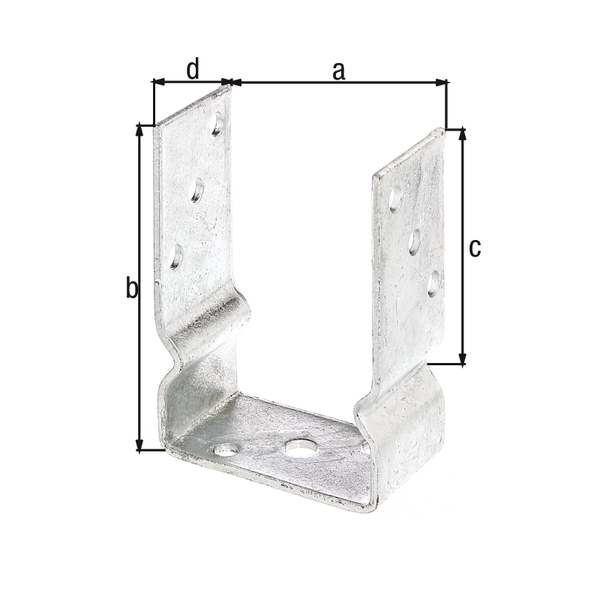

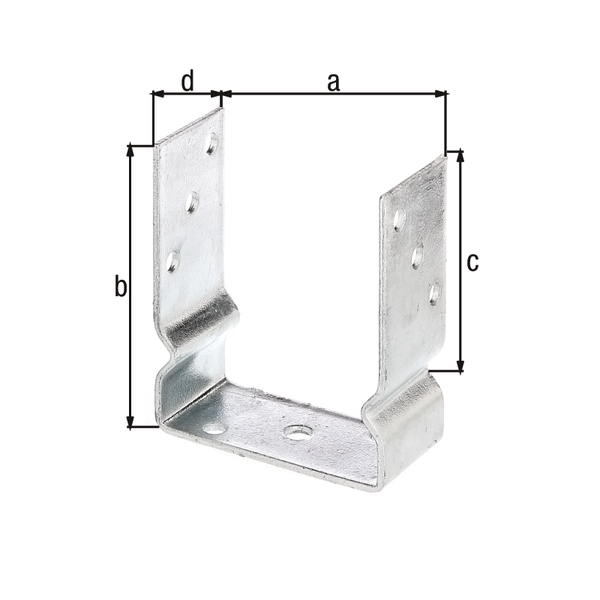

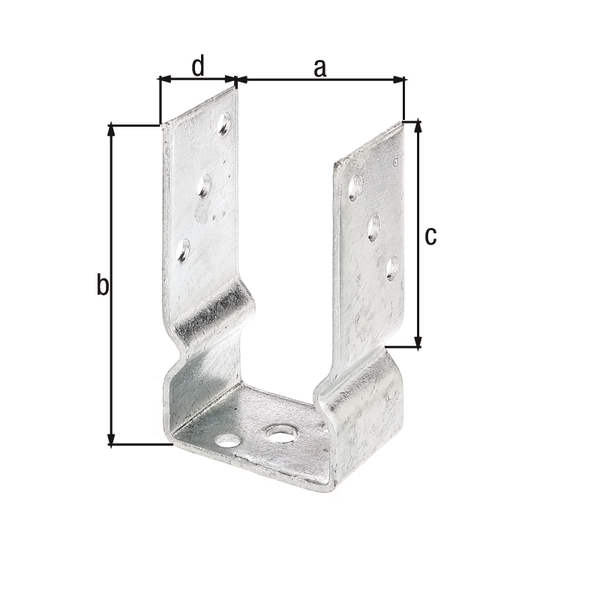

Dimension a:
71 mm
Dimension b:
150 mm
Dimension c:
100 mm
Dimension d:
60 mm
Fastening type:
ZAUFSCHR
Material thickness:
4 mm
Quantity x hole Ø:
8 x Ø11 mm
Quantity x hole Ø:
1 x Ø14 mm
Material/surface:
raw steel, hot-dip galvanised, for screwing on, with CE marking in accordance with ETA-10/0210
UNIT:
1
PU:
Piece
Surface / Colour:
FVZ
Material:
Steel
Approval:
Europ.techn.app. ETA-10/0210
:
71 mm
:
60 mm
:
150 mm
Weight per UQ (kg):
0.686 kg
  • with post supports on the side for constructive wood protection
  • Not statically suitable for high wooden and privacy fences. Suitable for timber construction and wooden fences as per the standard value table.
  • Suitable fasteners can be found in the range “Screws and accessories”.
