• U post support, type: height and width adjustable, Material: raw steel, Surface: galvanised, thick-film passivated, for screwing on, Clear width: 71 - 161 mm, Height: 120 mm, Distance from ground: 150 - 190 mm, Depth: 70 mm, Plate length: 100 mm, Plate thickness: 5 mm, Material thickness: 5.00 mm, No. of holes: 10, Hole: Ø11 mm
  • U post support, type: height and width adjustable, Material: raw steel, Surface: galvanised, thick-film passivated, for screwing on, Clear width: 71 - 161 mm, Height: 120 mm, Distance from ground: 150 - 190 mm, Depth: 70 mm, Plate length: 100 mm, Plate thickness: 5 mm, Material thickness: 5.00 mm, No. of holes: 10, Hole: Ø11 mm

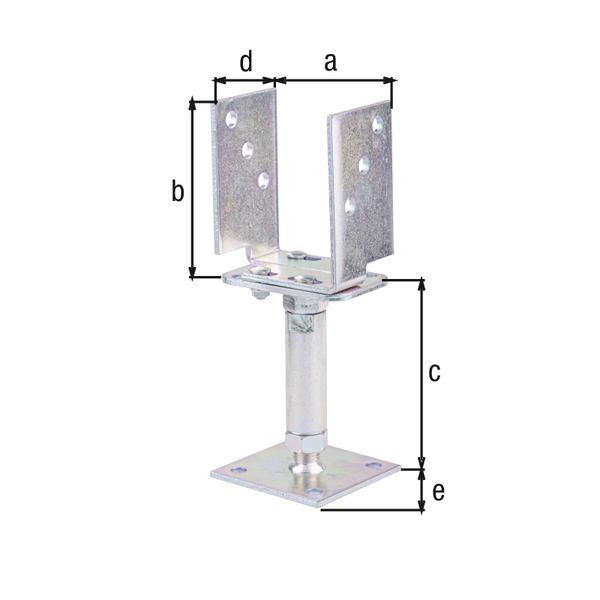

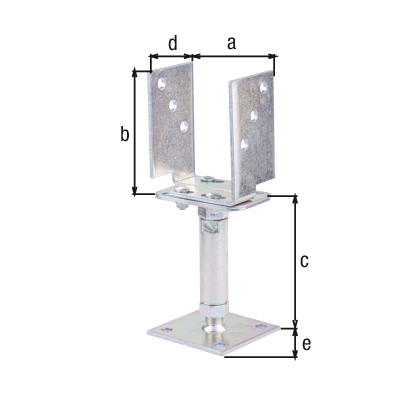

U post support

type: height and width adjustable
Art.-No. 218058

raw steel, galvanised, thick-film passivated, for screwing on

Dimension a:
71 - 161 mm
Dimension b:
120 mm
Dimension c:
150 - 190 mm
Dimension d:
70 mm
Dimension e:
100 mm
Fastening type:
ZAUFSCHR
Material thickness:
5 mm
Plate thickness:
5 mm
Quantity x hole Ø:
10 x Ø11 mm
Material/surface:
raw steel, galvanised, thick-film passivated, for screwing on
UNIT:
1
PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
:
120 mm
:
70 mm
:
150 - 190 mm
:
71 - 161 mm
Weight per UQ (kg):
2.095 kg
  • for wooden posts thicknesses from 71 to 161 mm
  • The M20 thread allows the height of the ground clearance to be adjusted from 150 to 190 mm while mounted.
  • Suitable for timber construction and wooden fences as per the standard value table.
  • Suitable fasteners can be found in the range “Screws and accessories”.
