• U post support with concrete anchor made of riffle steel, type: width adjustable, Material: raw steel, Surface: galvanised, thick-film passivated, for setting in concrete, Clear width: 71 - 131 mm, Height: 110 mm, Length of concrete anchor: 200 mm, Depth: 70 mm, Concrete anchor Ø: 16 mm, Material thickness: 5.00 mm, No. of holes: 6, Hole: Ø11 mm
  • U post support with concrete anchor made of riffle steel, type: width adjustable, Material: raw steel, Surface: galvanised, thick-film passivated, for setting in concrete, Clear width: 71 - 131 mm, Height: 110 mm, Length of concrete anchor: 200 mm, Depth: 70 mm, Concrete anchor Ø: 16 mm, Material thickness: 5.00 mm, No. of holes: 6, Hole: Ø11 mm

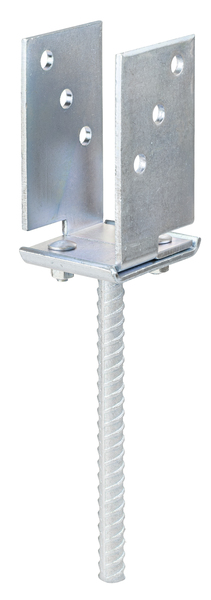

U post support with concrete anchor made of riffle steel

type: width adjustable
Art.-No. 214494

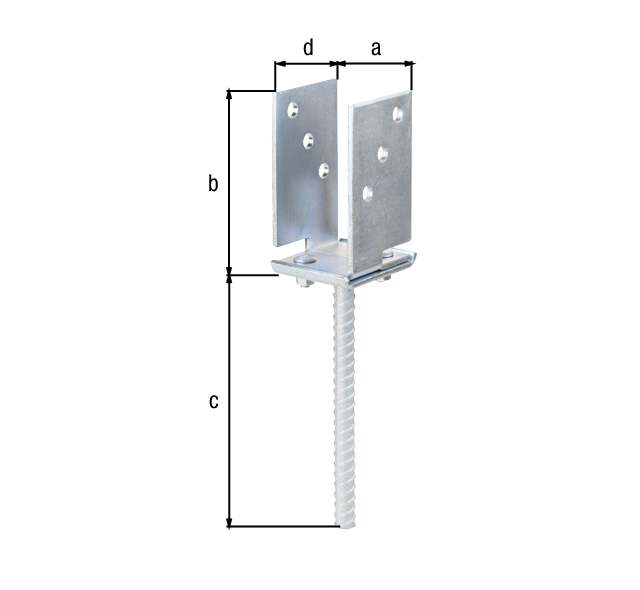

Dimension a:
71 - 131 mm
Dimension b:
110 mm
Dimension c:
200 mm
Dimension d:
70 mm
Concrete anchor Ø:
16 mm
Fastening type:
ZEINB
Material thickness:
5 mm
Quantity x hole Ø:
6 x Ø11 mm
Material/surface:
raw steel, galvanised, thick-film passivated, for setting in concrete
UNIT:
1
PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
:
110 mm
:
70 mm
:
71 - 131 mm
Weight per UQ (kg):
1.480 kg
  • for wooden posts thicknesses from 71 to 131 mm
  • Not statically suitable for high wooden and privacy fences. Suitable for timber construction and wooden fences as per the standard value table.
  • Suitable fasteners can be found in the range “Screws and accessories”.
