U post support with concrete anchor made of T-iron
Art.-No. 216795
raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210
- Dimension a:
- 101 mm
- Dimension b:
- 200 mm
- Dimension c:
- 200 mm
- Dimension d:
- 50 mm
- Concrete anchor:
- 40 x 4 mm
- Fastening type:
- ZEINB
- Material thickness:
- 4 mm
- Quantity x hole Ø:
- 4 x Ø11 mm
- Material/surface:
- raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210
- UNIT:
- 1
- PU:
- Piece
- Surface / Colour:
- FVZ
- Material:
- Steel
- Approval:
- Europ.techn.app. ETA-10/0210
- :
- 101 mm
- :
- 200 mm
- :
- 50 mm
- Weight per UQ (kg):
- 1.256 kg
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.216740
Dimension a71 mm
Dimension b200 mm
Dimension c200 mm
Dimension d50 mm
Article-No.216771
Dimension a91 mm
Dimension b200 mm
Dimension c200 mm
Dimension d50 mm
Article-No.216795
Dimension a101 mm
Dimension b200 mm
Dimension c200 mm
Dimension d50 mm

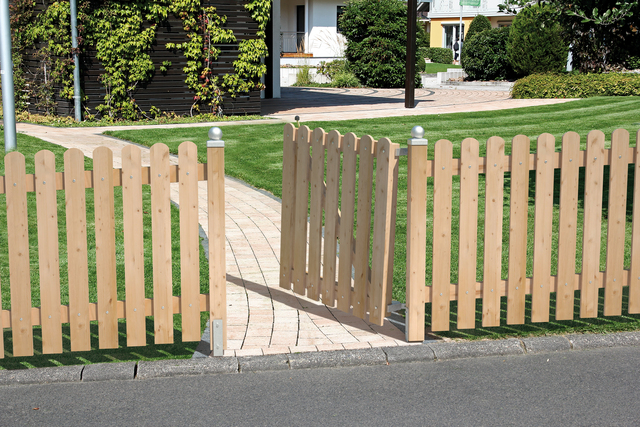

- Statically suitable for fence heights up to a maximum of 1500 mm with normal post distance. Suitable for timber construction and wooden fences as per the standard value table.
- The post support leg must be mounted perpendicular to the course of the fence in order to be able to absorb the strong lateral wind forces.
- Suitable fasteners can be found in the range “Screws and accessories”.
