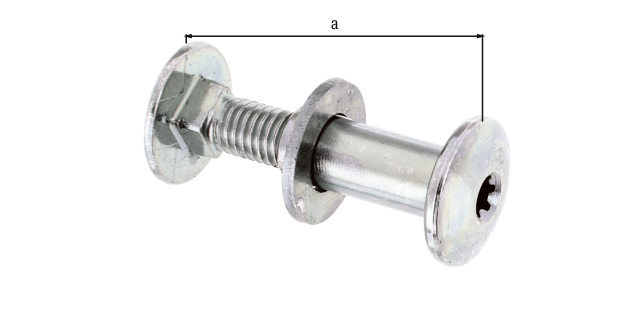

Round-head screw Multi-Fix

with sleeve nut
Art.-No. 338312

raw steel, blue galvanised, in hanging box

Dimension a:
50 mm
Screw length:
30 mm
Sleeve nut:
M8 x 25 mm
Disc internal Ø:
10.5 mm
Disc external Ø:
20 mm
Screw:
M8
Lug:
8.5 x 8.5 mm
Material/surface:
raw steel, blue galvanised, in hanging box
UNIT:
4
PU:
Pack
Content value per PU:
2
Content unit per PU:
Piece
Systems:
ZUB
Surface / Colour:
VERZ
Material:
Steel
:
50 mm
Weight per UQ (kg):
0.075 kg
  • for frame thicknesses including fitting of 27 - 45 mm (shutter hinges, tee hinges and strap hinges, middle and corner hinges)
  • flat head screw with six lobe drive according to DIN 603 with continuous thread
  • with six lobe drive size 30
  • suitable for square holes, 9 x 9 mm
  • disc according to DIN 125
