• Swing anchor for fixing in the ground, Material: raw steel, Surface: yellow galvanised, individual parts attached with cable ties, Contents per PU: 1 Piece, Length: 390 mm, Circlip dia.: 80 mm, Ground nail dia.: 12 mm, Screw length: 60 mm, Screw Ø: 8 mm, Retail packaged
  • Swing anchor for fixing in the ground, Material: raw steel, Surface: yellow galvanised, individual parts attached with cable ties, Contents per PU: 1 Piece, Length: 390 mm, Circlip dia.: 80 mm, Ground nail dia.: 12 mm, Screw length: 60 mm, Screw Ø: 8 mm, Retail packaged

Swing anchor for fixing in the ground

Art.-No. 204853

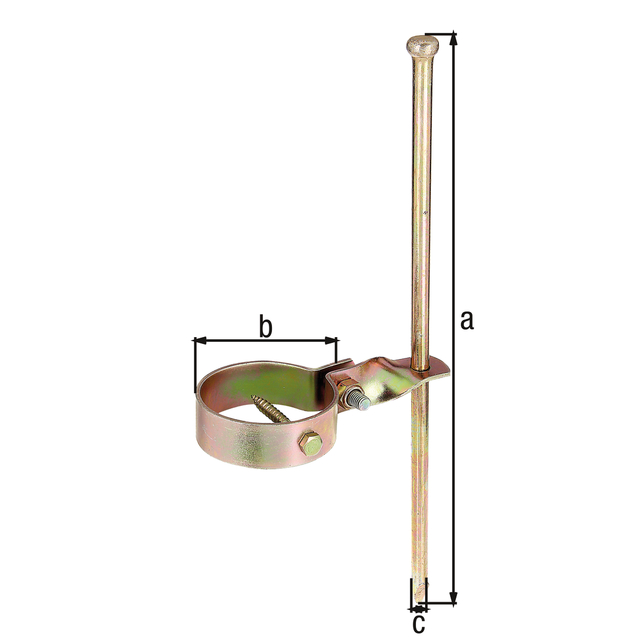

Dimension a:
390 mm
Dimension b-Ø:
80 mm
Dimension c-Ø:
12 mm
Screw length:
60 mm
Screw Ø:
8 mm
Fastening type:
ZEINSL
Material/surface:
raw steel, yellow galvanised, individual parts attached with cable ties
UNIT:
6
PU:
Card
Content value per PU:
1
Content unit per PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
:
390 mm
:
80 mm
Weight per UQ (kg):
0.69 kg
Article-No.
Dimension a
Dimension b-Ø
Dimension c-Ø
Screw length
Action
Article-No.204853
Dimension a390 mm
Dimension b-Ø80 mm
Dimension c-Ø12 mm
Screw length60 mm
Article-No.204877
Dimension a390 mm
Dimension b-Ø100 mm
Dimension c-Ø12 mm
Screw length60 mm
  • The supporting post does not have to be embedded in the ground.
  • One set consists of one clip, one ground nail and one lag bolt
