• Strap hinge, with riveted pin, Material: raw steel, Surface: galvanised, thick-film passivated, Belt length: 202 mm, Hinge width: 77 mm, Hinge length: 48 mm, Belt width: 35 mm, Type: light, Material thickness: 2.50 mm, No. of holes: 5 / 1 / 1, Hole: Ø6 / Ø9 / 7 x 7 mm
  • Strap hinge, with riveted pin, Material: raw steel, Surface: galvanised, thick-film passivated, Belt length: 202 mm, Hinge width: 77 mm, Hinge length: 48 mm, Belt width: 35 mm, Type: light, Material thickness: 2.50 mm, No. of holes: 5 / 1 / 1, Hole: Ø6 / Ø9 / 7 x 7 mm

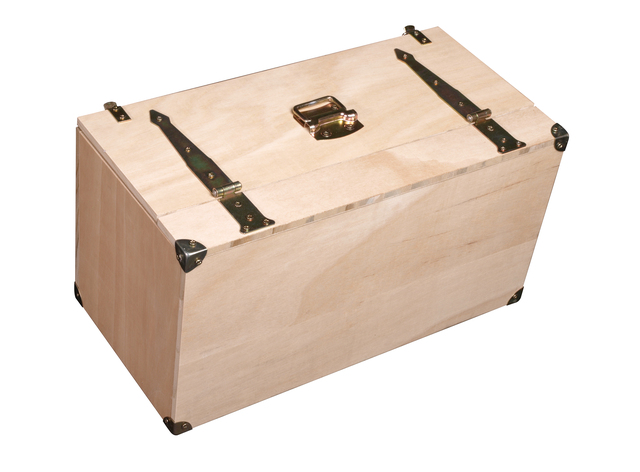

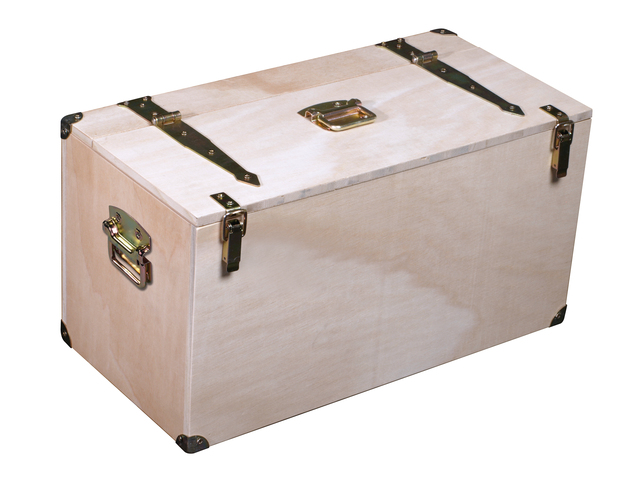

Strap hinge

with riveted pin
Art.-No. 315092

raw steel, galvanised, thick-film passivated

3 Variants
Dimension a:
202 mm
Dimension b:
77 mm
Dimension c:
48 mm
Dimension d:
35 mm
Material thickness:
2.5 mm
Quantity x hole Ø:
5 x Ø6 mm
Quantity x hole Ø:
1 x Ø9 mm
Quantity x hole (LxW):
1 x ( 7 x 7 ) mm
Material/surface:
raw steel, galvanised, thick-film passivated
UNIT:
10
PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
:
202 mm
Type:
light
Weight per UQ (kg):
0.161 kg
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.315092
Dimension a202 mm
Dimension b77 mm
Dimension c48 mm
Dimension d35 mm
Article-No.315146
Dimension a252 mm
Dimension b77 mm
Dimension c48 mm
Dimension d35 mm
Article-No.315191
Dimension a302 mm
Dimension b77 mm
Dimension c48 mm
Dimension d35 mm
  • Suitable fasteners can be found in the range “Screws and accessories”.
