• Universal post, Material: raw steel, Surface: hot-dip galvanised, for screwing on, Plate length: 200 mm, Plate width: 40 mm, Width post: 30 mm, Depth of post: 30 mm, Length: 950 mm, Material thickness: 10.00 mm, No. of holes: 2 / 1, Hole: Ø11 / Ø14 mm
  • Universal post, Material: raw steel, Surface: hot-dip galvanised, for screwing on, Plate length: 200 mm, Plate width: 40 mm, Width post: 30 mm, Depth of post: 30 mm, Length: 950 mm, Material thickness: 10.00 mm, No. of holes: 2 / 1, Hole: Ø11 / Ø14 mm

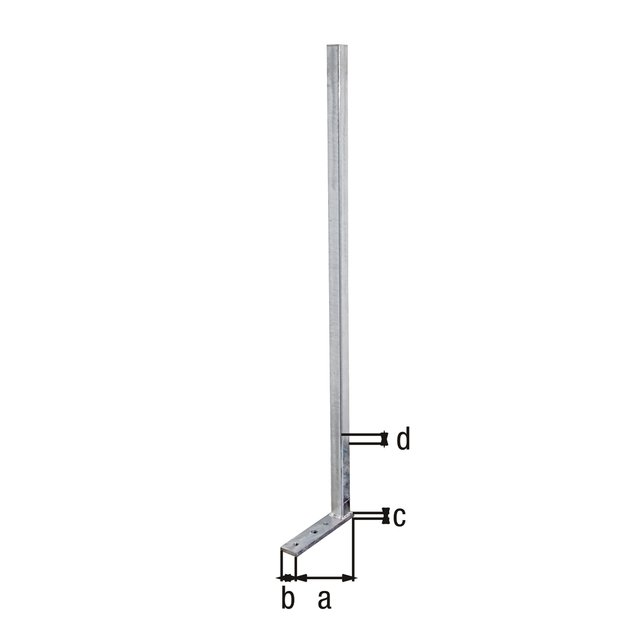

Universal post

Art.-No. 700300
Dimension a:
200 mm
Dimension b:
40 mm
Dimension c:
30 mm
Dimension d:
30 mm
Length:
950 mm
Fastening type:
for screwing on
Material thickness:
10 mm
Material thickness of posts:
2 mm
Quantity x hole Ø:
2 x Ø11 mm
Quantity x hole Ø:
1 x Ø14 mm
Material/surface:
raw steel, hot-dip galvanised, for screwing on
Systems:
Post
Surface / Colour:
hot-dip galvanised
Material:
Steel
Plate width:
40 mm
Plate length:
200 mm
Weight per UQ (kg):
2.340 kg
Content Unit:
1 Piece
