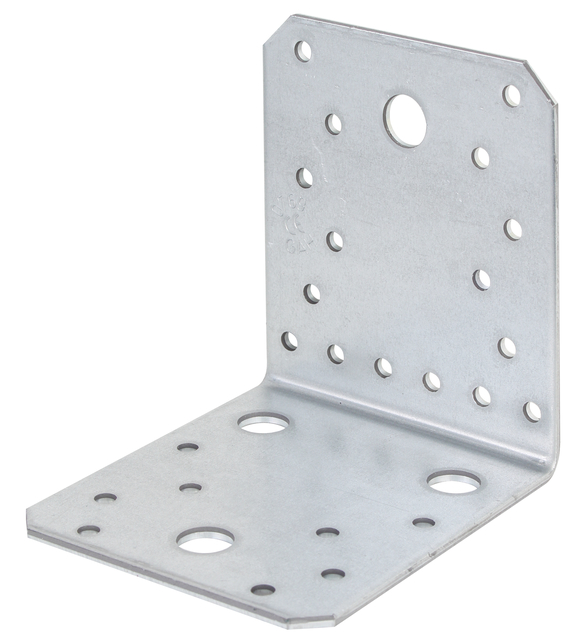

Angle bracket
Art.-No. 334635
raw steel, sendzimir galvanised, with CE marking in accordance with ETA-08/0165
- Dimension a:
- 105 mm
- Dimension b:
- 105 mm
- Dimension c:
- 90 mm
- Fastening type:
- ZAUFSCHR
- Material thickness:
- 3 mm
- Quantity x hole Ø:
- 4 x Ø13 mm
- Quantity x hole Ø:
- 24 x Ø5 mm
- Material/surface:
- raw steel, sendzimir galvanised, with CE marking in accordance with ETA-08/0165
- UNIT:
- 25
- PU:
- Piece
- Surface / Colour:
- VERZ
- Material:
- Steel
- Approval:
- Europ.techn.app. ETA-08/0165
- :
- 90 mm
- :
- 105 mm
- :
- 105 mm
- Weight per UQ (kg):
- 0.394 kg
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No.334611
Dimension a70 mm
Dimension b70 mm
Dimension c55 mm
Fastening typeZAUFSCHR
Article-No.334628
Dimension a90 mm
Dimension b90 mm
Dimension c65 mm
Fastening typeZAUFSCHR
Article-No.334635
Dimension a105 mm
Dimension b105 mm
Dimension c90 mm
Fastening typeZAUFSCHR
