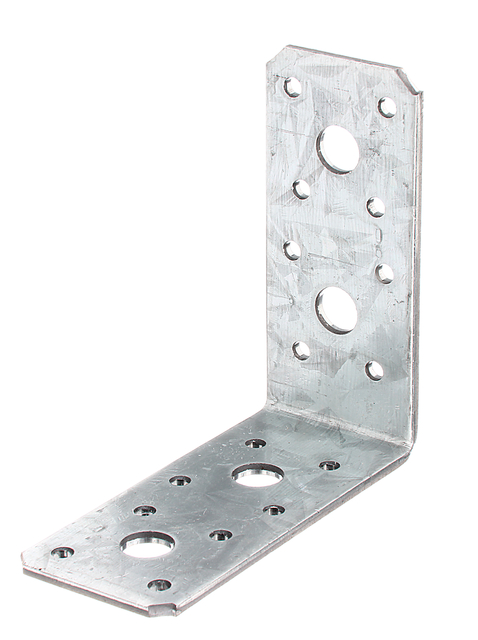

Angle bracket
Art.-No. 332914
- Dimension a:
- 90 mm
- Dimension b:
- 90 mm
- Dimension c:
- 40 mm
- Fastening type:
- for screwing on
- Material thickness:
- 3 mm
- Quantity x hole Ø:
- 4 x Ø11 mm
- Quantity x hole Ø:
- 16 x Ø5 mm
- Material/surface:
- raw steel, sendzimir galvanised, with CE marking in accordance with ETA-08/0165
- Surface / Colour:
- galvanised
- Material:
- Steel
- Approval:
- Europ.techn.app. ETA-08/0165
- Width:
- 40 mm
- Height:
- 90 mm
- Depth:
- 90 mm
- Weight per UQ (kg):
- 0.920 kg
- Content per PU:
- 6 Piece / Pack
- Content Unit:
- 10 Pack
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No.
330309
Dimension a
50 mm
Dimension b
50 mm
Dimension c
35 mm
Fastening type
for screwing on
Article-No.
336455
Dimension a
50 mm
Dimension b
50 mm
Dimension c
35 mm
Fastening type
for screwing on
Article-No.
332334
Dimension a
50 mm
Dimension b
50 mm
Dimension c
35 mm
Fastening type
for screwing on
Article-No.
330323
Dimension a
50 mm
Dimension b
50 mm
Dimension c
35 mm
Fastening type
for screwing on
Article-No.
330255
Dimension a
50 mm
Dimension b
50 mm
Dimension c
40 mm
Fastening type
for screwing on
Article-No.
330316
Dimension a
50 mm
Dimension b
50 mm
Dimension c
40 mm
Fastening type
for screwing on
Article-No.
330644
Dimension a
80 mm
Dimension b
80 mm
Dimension c
40 mm
Fastening type
for screwing on
Article-No.
330408
Dimension a
90 mm
Dimension b
90 mm
Dimension c
40 mm
Fastening type
for screwing on
Article-No.
332914
Dimension a
90 mm
Dimension b
90 mm
Dimension c
40 mm
Fastening type
for screwing on
Article-No.
353216
Dimension a
100 mm
Dimension b
100 mm
Dimension c
40 mm
Fastening type
for screwing on
Article-No.
330835
Dimension a
60 mm
Dimension b
60 mm
Dimension c
45 mm
Fastening type
for screwing on
Article-No.
339630
Dimension a
70 mm
Dimension b
70 mm
Dimension c
55 mm
Fastening type
for screwing on
Article-No.
336516
Dimension a
70 mm
Dimension b
70 mm
Dimension c
55 mm
Fastening type
for screwing on
Article-No.
332938
Dimension a
70 mm
Dimension b
70 mm
Dimension c
55 mm
Fastening type
for screwing on
Article-No.
332525
Dimension a
40 mm
Dimension b
60 mm
Dimension c
60 mm
Fastening type
for screwing on
Article-No.
334369
Dimension a
40 mm
Dimension b
60 mm
Dimension c
60 mm
Fastening type
for screwing on
Article-No.
332976
Dimension a
60 mm
Dimension b
80 mm
Dimension c
60 mm
Fastening type
for screwing on
Article-No.
334352
Dimension a
60 mm
Dimension b
80 mm
Dimension c
60 mm
Fastening type
for screwing on
Article-No.
330149
Dimension a
60 mm
Dimension b
100 mm
Dimension c
60 mm
Fastening type
for screwing on
Article-No.
330453
Dimension a
90 mm
Dimension b
90 mm
Dimension c
65 mm
Fastening type
for screwing on
Article-No.
336509
Dimension a
90 mm
Dimension b
90 mm
Dimension c
65 mm
Fastening type
for screwing on
Article-No.
333614
Dimension a
90 mm
Dimension b
90 mm
Dimension c
65 mm
Fastening type
for screwing on
Article-No.
330507
Dimension a
105 mm
Dimension b
105 mm
Dimension c
90 mm
Fastening type
for screwing on
Article-No.
336530
Dimension a
105 mm
Dimension b
105 mm
Dimension c
90 mm
Fastening type
for screwing on
- Height load-bearing capacity for demanding constructions.
