• Perforated plate, Material: raw steel, Surface: sendzimir galvanised, with CE marking in accordance with DIN EN 14545, Length: 240 mm, Width: 120 mm, Approval: Europ.Techn.Zul. EN14545:2008, Material thickness: 2.00 mm, No. of holes: 69, Hole: Ø5 mm
  • Perforated plate, Material: raw steel, Surface: sendzimir galvanised, with CE marking in accordance with DIN EN 14545, Length: 240 mm, Width: 120 mm, Approval: Europ.Techn.Zul. EN14545:2008, Material thickness: 2.00 mm, No. of holes: 69, Hole: Ø5 mm

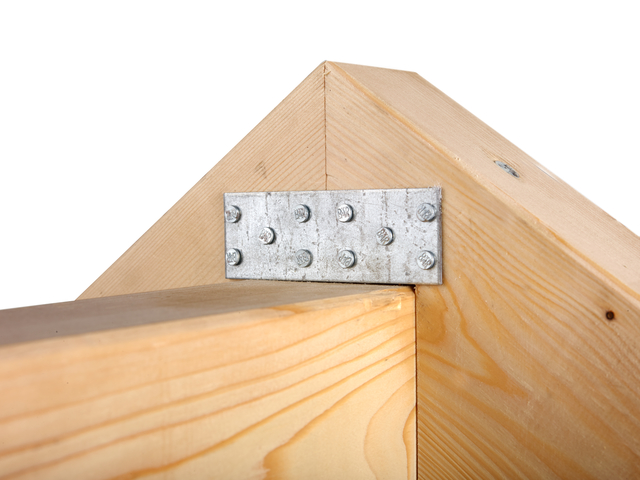

Perforated plate

Art.-No. 333782
13 Variants
Dimension a:
240 mm
Dimension b:
120 mm
Fastening type:
ZAUFSCHR
Material thickness:
2 mm
Quantity x hole Ø:
69 x Ø5 mm
Material/surface:
raw steel, sendzimir galvanised, with CE marking in accordance with DIN EN 14545
UNIT:
25
PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
Approval:
Europ.Techn.Zul. EN14545:2008
:
240 mm
:
120 mm
Weight per UQ (kg):
0.43 kg
