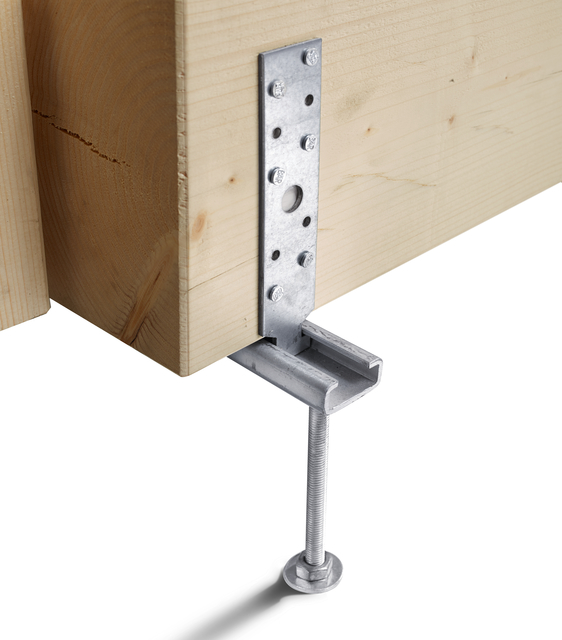

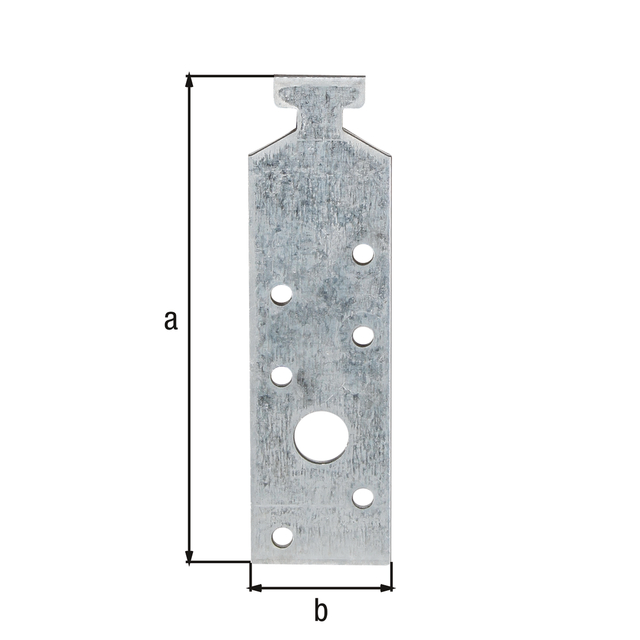

• Profile anchor for Halfen channels, Material: raw steel, Surface: sendzimir galvanised, for Halfen channels 28/15, with CE marking in accordance with DIN EN 14545, Length: 160 mm, Width: 34 mm, Approval: Europ.techn.app. EN14545:2009-2/89/106/EEC+93/68/EEC, Material thickness: 3.00 mm, No. of holes: 1 / 10, Hole: Ø13 / Ø5 mm, Designed for standard cross-sections made from solid structural timber (SST) and glued laminated timber (glulam), CutCase
  • Profile anchor for Halfen channels, Material: raw steel, Surface: sendzimir galvanised, for Halfen channels 28/15, with CE marking in accordance with DIN EN 14545, Length: 160 mm, Width: 34 mm, Approval: Europ.techn.app. EN14545:2009-2/89/106/EEC+93/68/EEC, Material thickness: 3.00 mm, No. of holes: 1 / 10, Hole: Ø13 / Ø5 mm, Designed for standard cross-sections made from solid structural timber (SST) and glued laminated timber (glulam), CutCase

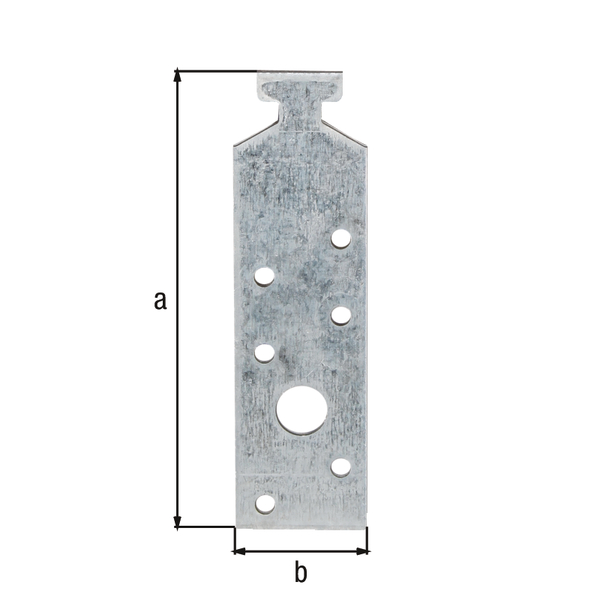

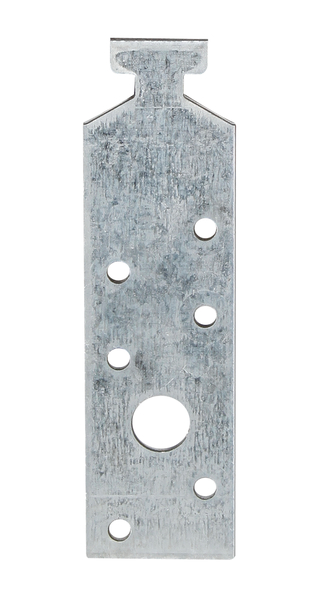

Profile anchor for Halfen channels

Art.-No. 334468
2 Variants
Dimension a:
160 mm
Dimension b:
34 mm
Fastening type:
ZAUFSCHR
Material thickness:
3 mm
Quantity x hole Ø:
1 x Ø13 mm
Quantity x hole Ø:
10 x Ø5 mm
Material/surface:
raw steel, sendzimir galvanised, for Halfen channels 28/15, with CE marking in accordance with DIN EN 14545
UNIT:
50
PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
Approval:
Europ.techn.app. EN14545:2009-2/89/106/EEC+93/68/EEC
:
160 mm
:
34 mm
Weight per UQ (kg):
0.11 kg
Article-No.
Dimension a
Dimension b
Fastening type
Material thickness
Action
Article-No.334468
Dimension a160 mm
Dimension b34 mm
Fastening typeZAUFSCHR
Material thickness3 mm

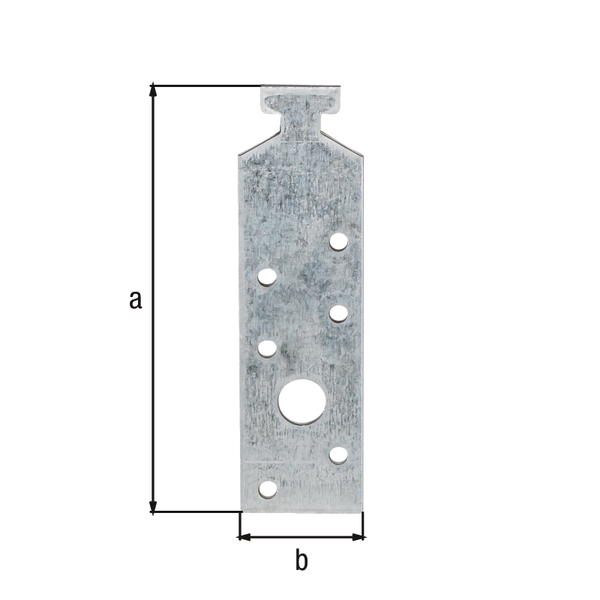

Article-No.334475
Dimension a180 mm
Dimension b34 mm
Fastening typeZAUFSCHR
Material thickness3 mm
