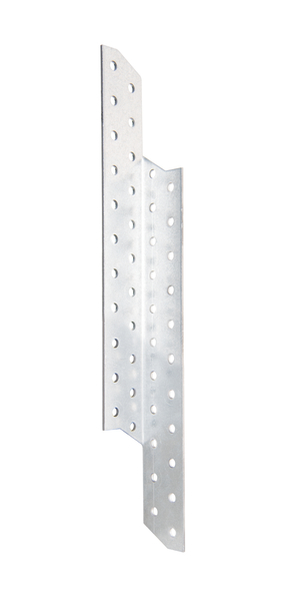

Rafter purlin anchor
Art.-No. 331214
- Dimension a:
- 32 mm
- Dimension b:
- 32 mm
- Dimension c:
- 290 mm
- Fastening type:
- for screwing on
- Material thickness:
- 2 mm
- Quantity x hole Ø:
- 44 x Ø5 mm
- Material/surface:
- raw steel, sendzimir galvanised, right, with CE marking in accordance with ETA-08/0170
- Surface / Colour:
- galvanised
- Material:
- Steel
- Approval:
- Europ.techn.app. ETA-08/0170
- Width:
- 32 mm
- Height:
- 290 mm
- Depth:
- 32 mm
- Weight per UQ (kg):
- 0.209 kg
- Content Unit:
- 25 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No.
330958
Dimension a
32 mm
Dimension b
32 mm
Dimension c
170 mm
Fastening type
for screwing on
Article-No.
331054
Dimension a
32 mm
Dimension b
32 mm
Dimension c
210 mm
Fastening type
for screwing on
Article-No.
331153
Dimension a
32 mm
Dimension b
32 mm
Dimension c
250 mm
Fastening type
for screwing on
Article-No.
331214
Dimension a
32 mm
Dimension b
32 mm
Dimension c
290 mm
Fastening type
for screwing on
Article-No.
331245
Dimension a
32 mm
Dimension b
32 mm
Dimension c
330 mm
Fastening type
for screwing on
Article-No.
331344
Dimension a
32 mm
Dimension b
32 mm
Dimension c
370 mm
Fastening type
for screwing on
- With building authority approval at: www.alberts.de/zulassungen.
