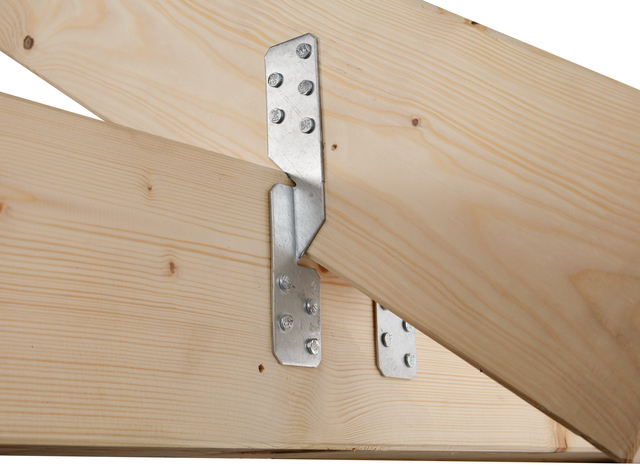

• Rafter purlin anchor, multifunctional, Material: raw steel, Surface: sendzimir galvanised, with CE marking in accordance with ETA-14/0105, Width: 33 mm, Depth: 33 mm, Height: 170 mm, Approval: Europ.techn.app. ETA-14/0105, Material thickness: 2.00 mm, No. of holes: 9, Hole: Ø5 mm, Designed for standard cross-sections made from solid structural timber (SST) and glued laminated timber (glulam), CutCase
  • Rafter purlin anchor, multifunctional, Material: raw steel, Surface: sendzimir galvanised, with CE marking in accordance with ETA-14/0105, Width: 33 mm, Depth: 33 mm, Height: 170 mm, Approval: Europ.techn.app. ETA-14/0105, Material thickness: 2.00 mm, No. of holes: 9, Hole: Ø5 mm, Designed for standard cross-sections made from solid structural timber (SST) and glued laminated timber (glulam), CutCase

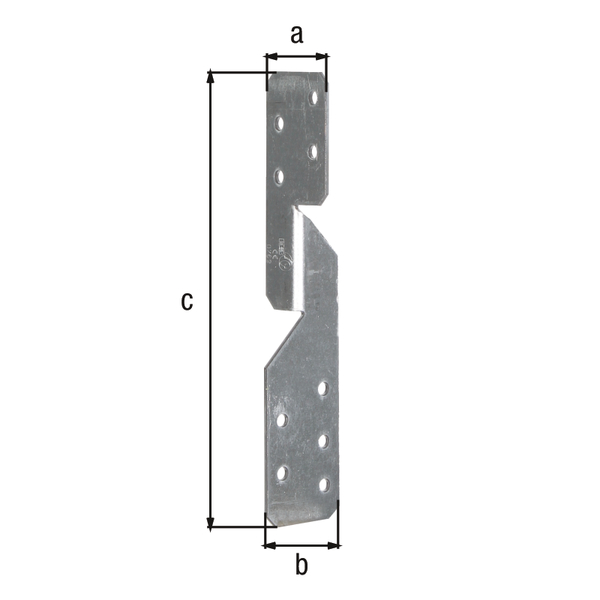

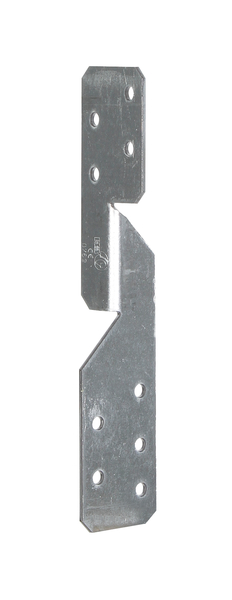

Rafter purlin anchor

multifunctional
Art.-No. 338077

raw steel, sendzimir galvanised, with CE marking in accordance with ETA-14/0105

3 Variants
Dimension a:
33 mm
Dimension b:
33 mm
Dimension c:
170 mm
Fastening type:
ZAUFSCHR
Material thickness:
2 mm
Quantity x hole Ø:
9 x Ø5 mm
Material/surface:
raw steel, sendzimir galvanised, with CE marking in accordance with ETA-14/0105
UNIT:
50
PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
Approval:
Europ.techn.app. ETA-14/0105
:
33 mm
:
170 mm
:
33 mm
Weight per UQ (kg):
0.083 kg
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No.338077
Dimension a33 mm
Dimension b33 mm
Dimension c170 mm
Fastening typeZAUFSCHR

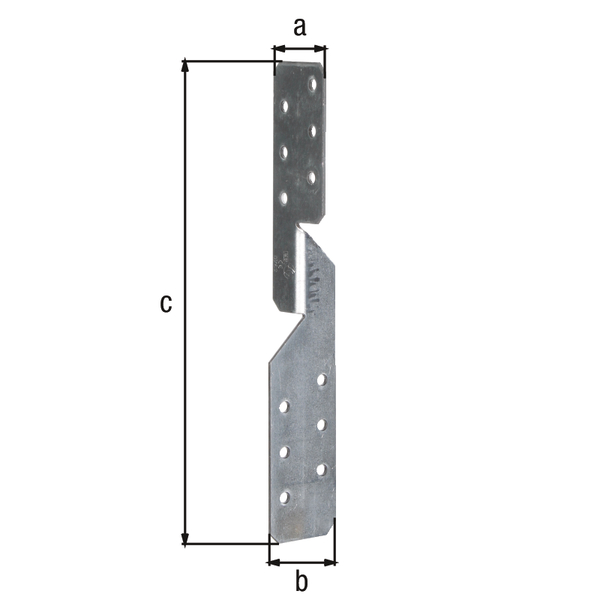

Article-No.338084
Dimension a33 mm
Dimension b33 mm
Dimension c210 mm
Fastening typeZAUFSCHR

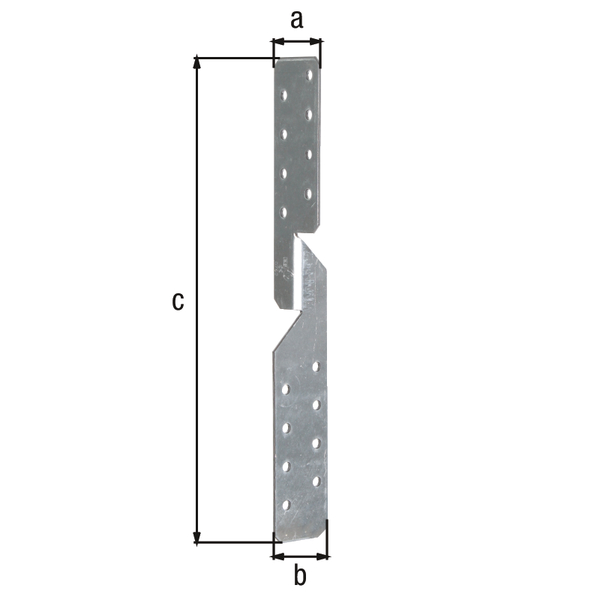

Article-No.338091
Dimension a33 mm
Dimension b33 mm
Dimension c250 mm
Fastening typeZAUFSCHR
