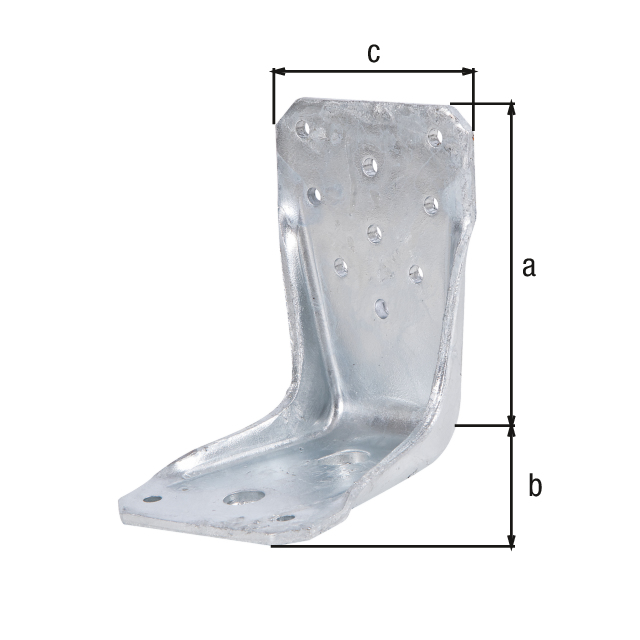

Angle bracket KR
Art.-No. 330934
raw steel, hot-dip galvanised, with CE marking in accordance with ETA-08/0165
- Dimension a:
- 95 mm
- Dimension b:
- 85 mm
- Dimension c:
- 65 mm
- Fastening type:
- ZAUFSCHR
- Material thickness:
- 4 mm
- Quantity x hole Ø:
- 1 x Ø11 mm
- Quantity x hole Ø:
- 1 x Ø13 mm
- Quantity x hole Ø:
- 11 x Ø5 mm
- Material/surface:
- raw steel, hot-dip galvanised, with CE marking in accordance with ETA-08/0165
- UNIT:
- 20
- PU:
- Piece
- Surface / Colour:
- FVZ
- Material:
- Steel
- Approval:
- Europ.techn.app. ETA-08/0165
- :
- 65 mm
- :
- 95 mm
- :
- 85 mm
- Weight per UQ (kg):
- 0.338 kg
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No.330934
Dimension a95 mm
Dimension b85 mm
Dimension c65 mm
Fastening typeZAUFSCHR
Article-No.330910
Dimension a135 mm
Dimension b85 mm
Dimension c65 mm
Fastening typeZAUFSCHR
Article-No.330927
Dimension a285 mm
Dimension b85 mm
Dimension c65 mm
Fastening typeZAUFSCHR
