• Toothed wood connector, Material: raw steel, Surface: sendzimir galvanised, with CE marking in accordance with DIN EN 14545, External dia.: 48 mm, Inner dia.: 17 mm, Approval: Europ.techn.app. EN14545:2009-2/89/106/EEC+93/68/EEC, For screw: M16, Designed for standard cross-sections made from solid structural timber (SST) and glued laminated timber (glulam), CutCase
  • Toothed wood connector, Material: raw steel, Surface: sendzimir galvanised, with CE marking in accordance with DIN EN 14545, External dia.: 48 mm, Inner dia.: 17 mm, Approval: Europ.techn.app. EN14545:2009-2/89/106/EEC+93/68/EEC, For screw: M16, Designed for standard cross-sections made from solid structural timber (SST) and glued laminated timber (glulam), CutCase

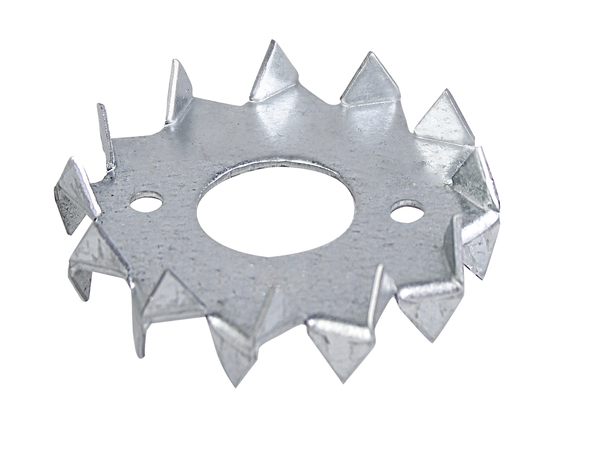

Toothed wood connector

Art.-No. 334437

raw steel, sendzimir galvanised, with CE marking in accordance with DIN EN 14545

3 Variants

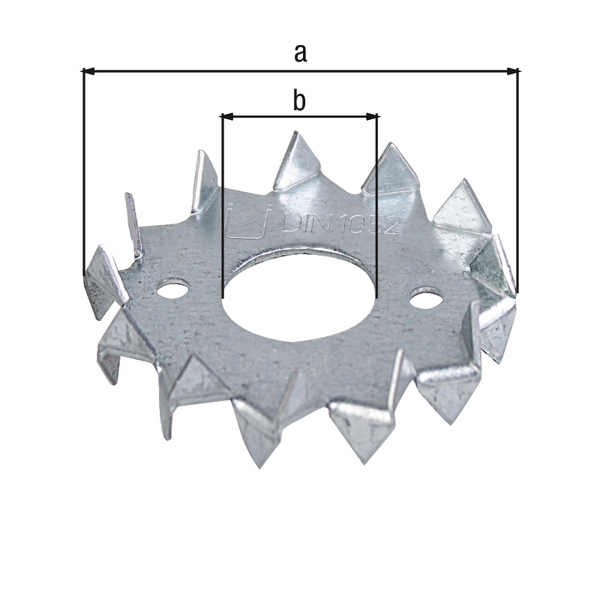

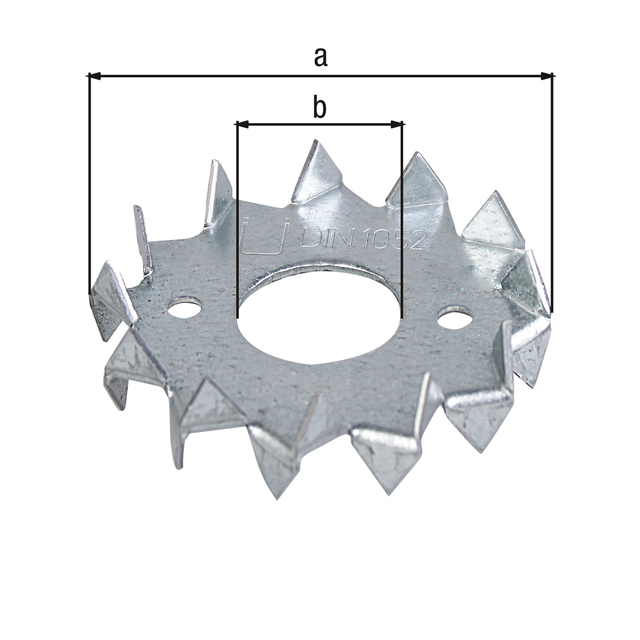

Dimension a-Ø:
48 mm
Dimension b-Ø:
17 mm
Fastening type:
ZAUFSCHR
Material/surface:
raw steel, sendzimir galvanised, with CE marking in accordance with DIN EN 14545
UNIT:
150
PU:
Piece
Surface / Colour:
VERZ
Material:
Steel
:
48 mm
:
17 mm
Approval:
Europ.techn.app. EN14545:2009-2/89/106/EEC+93/68/EEC
Weight per UQ (kg):
0.015 kg
For screw:
M16
Article-No.
Dimension a-Ø
Dimension b-Ø
Fastening type
Material/surface
Action
Article-No.334437
Dimension a-Ø48 mm
Dimension b-Ø17 mm
Fastening typeZAUFSCHR
Material/surfaceraw steel, sendzimir galvanised, with CE marking in accordance with DIN EN 14545

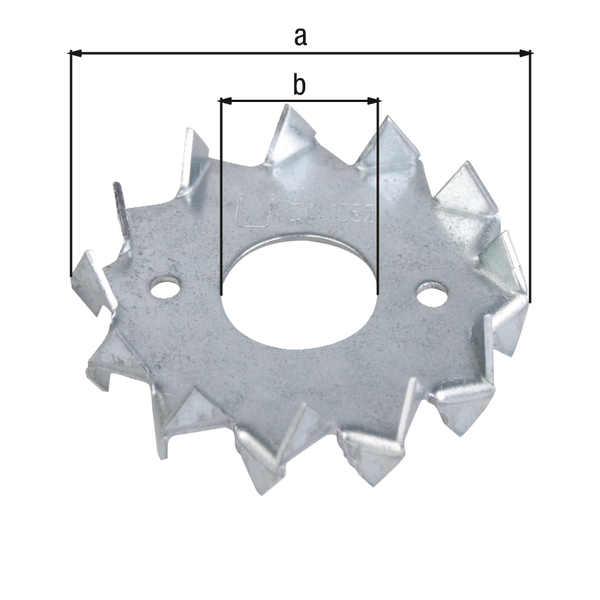

Article-No.334444
Dimension a-Ø62 mm
Dimension b-Ø21 mm
Fastening typeZAUFSCHR
Material/surfaceraw steel, sendzimir galvanised, with CE marking in accordance with DIN EN 14545

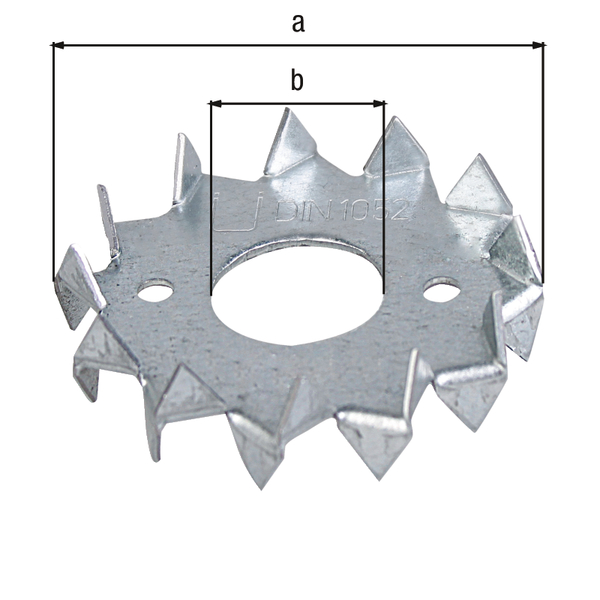

Article-No.338039
Dimension a-Ø75 mm
Dimension b-Ø26 mm
Fastening typeZAUFSCHR
Material/surfaceraw steel, sendzimir galvanised, with CE marking in accordance with DIN EN 14545
  • type C1, double-sided with teeth
  • produced in accordance with EN912 (DIN 1052)
