• Deadbolt lock especially for frame gates, Heavy, stable design for use outdoors., All inner parts are galvanised to protect against rust., with countersunk screw holes, Material: raw steel, Surface: galvanised, Height lock case: 167 mm, Depth lock case: 85 mm, Size back set: 55 mm, Distance: 72 mm, Strike plate width: 24 mm, Strike plate height: 235 mm, Bolt recess: 13 / 25 mm, Socket: 8 x 8 mm
  • Deadbolt lock especially for frame gates, Heavy, stable design for use outdoors., All inner parts are galvanised to protect against rust., with countersunk screw holes, Material: raw steel, Surface: galvanised, Height lock case: 167 mm, Depth lock case: 85 mm, Size back set: 55 mm, Distance: 72 mm, Strike plate width: 24 mm, Strike plate height: 235 mm, Bolt recess: 13 / 25 mm, Socket: 8 x 8 mm

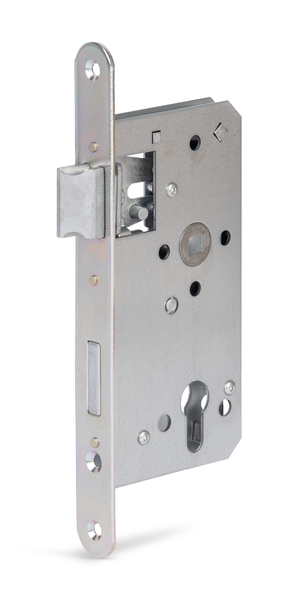

Deadbolt lock especially for frame gates

with countersunk screw holes
Art.-No. 215224

raw steel, galvanised

2 Variants
Item description:
O_SCHLIESSBL

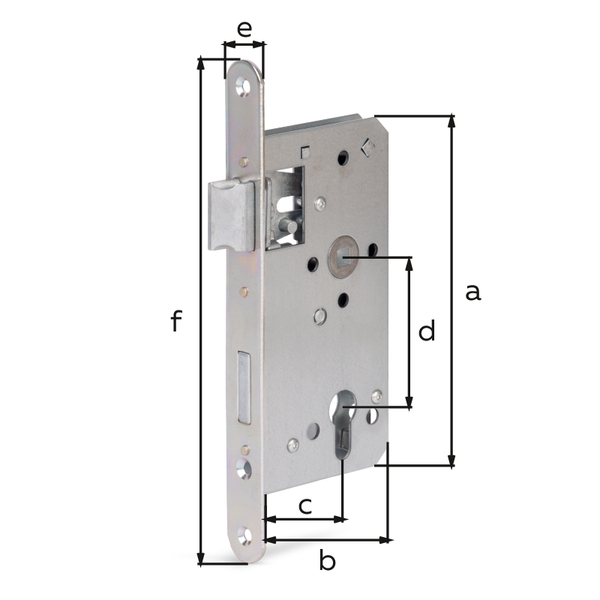

Dimension a:
167 mm
Dimension b:
85 mm
Dimension c:
55 mm
Dimension d:
72 mm
Dimension e:
24 mm
Dimension f:
235 mm
Bolt recess:
13 / 25 mm
Socket:
8 x 8 mm
Fastening type:
ZAUFSCHR
Material/surface:
raw steel, galvanised
UNIT:
1
PU:
Piece
Systems:
SCHLS,TORZU
Surface / Colour:
VERZ
Material:
Steel
:
167 mm
Weight per UQ (kg):
0.755 kg
Article-No.
Item description
Dimension a
Dimension b
Dimension c
Action
Article-No.215224
Item descriptionO_SCHLIESSBL
Dimension a167 mm
Dimension b85 mm
Dimension c55 mm

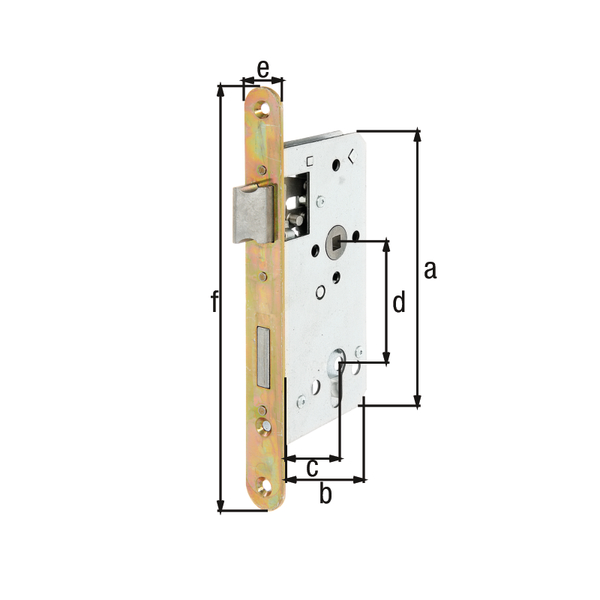

Article-No.215231
Item descriptionM_SCHLIESSBL
Dimension a167 mm
Dimension b85 mm
Dimension c55 mm
  • applicable DIN left and right
  • PC perforation
  • with switch-over
  • 2-level
  • foldable latch
  • rounded strike plate
