• Double gate hasp, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, individual parts attached with cable ties, Total length: 423 mm, Plate length: 180 mm, Plate width: 70 mm, Length of hasp: 333 mm, No. of holes: 12, Hole: Ø5 mm
  • Double gate hasp, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, individual parts attached with cable ties, Total length: 423 mm, Plate length: 180 mm, Plate width: 70 mm, Length of hasp: 333 mm, No. of holes: 12, Hole: Ø5 mm

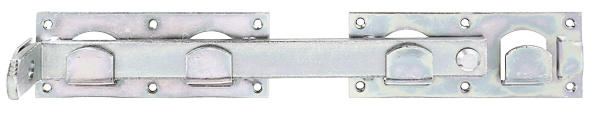

Double gate hasp

with countersunk screw holes
Art.-No. 210625

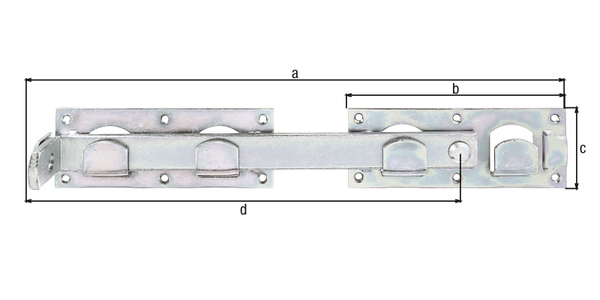

Dimension a:
423 mm
Dimension b:
180 mm
Dimension c:
70 mm
Dimension d:
333 mm
Fastening type:
for screwing on
Quantity x hole Ø:
12 x Ø5 mm
Material/surface:
raw steel, galvanised, thick-film passivated, individual parts attached with cable ties
Systems:
Gate trap and Gate fasteners,Throw over
Surface / Colour:
Thick film protection
Material:
Steel
Plate width:
70 mm
Total length:
423 mm
Plate length:
180 mm
Weight per UQ (kg):
0.945 kg
Content Unit:
5 Piece
  • the closing bracket can be used on both sides
  • applicable DIN left and right
  • padlock compatible
  • Thick film protection guarantees maximum durability and corrosion resistance.
  • Padlocks not included.
