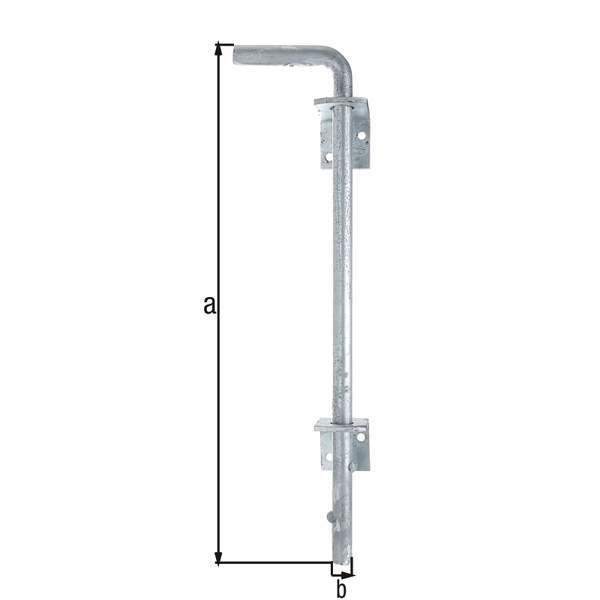

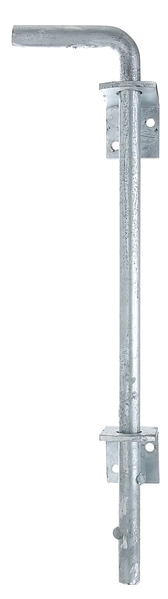

Drop bolt
Art.-No. 211011
raw steel, hot-dip galvanised
- Dimension a:
- 400 mm
- Dimension b-Ø:
- 16 mm
- Distance bolt - gate:
- 30 mm
- Fastening type:
- ZAUFSCHR
- Quantity x hole Ø:
- 4 x Ø6.5 mm
- Material/surface:
- raw steel, hot-dip galvanised
- UNIT:
- 1
- PU:
- Cardboard
- Systems:
- BDSCH
- Surface / Colour:
- FVZ
- Material:
- Steel
- :
- 16 mm
- :
- 400 mm
- Weight per UQ (kg):
- 0.988 kg
Article-No.
Dimension a
Dimension b-Ø
Distance bolt - gate
Fastening type
Action
Article-No.211011
Dimension a400 mm
Dimension b-Ø16 mm
Distance bolt - gate30 mm
Fastening typeZAUFSCHR

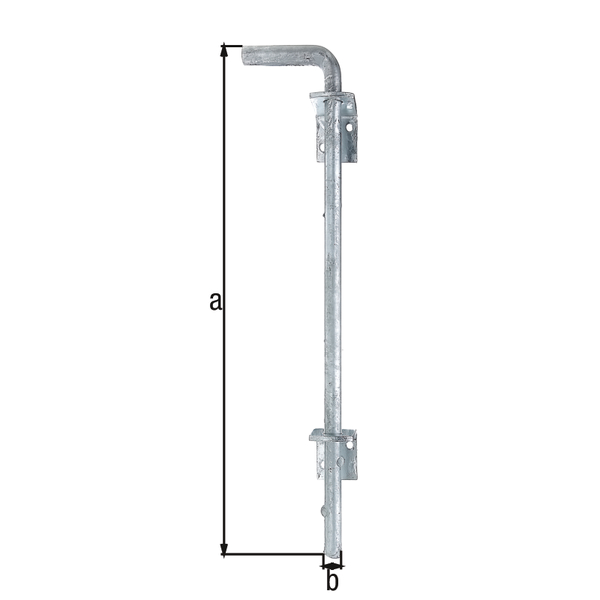

Article-No.211028
Dimension a400 mm
Dimension b-Ø16 mm
Distance bolt - gate40 mm
Fastening typeZAUFSCHR

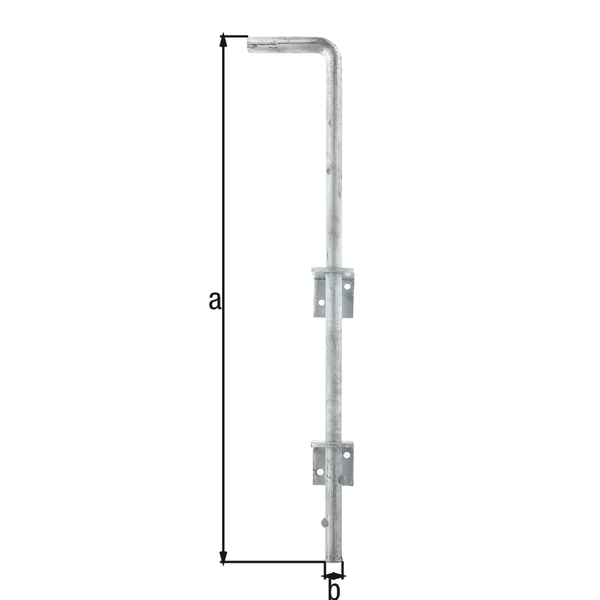

Article-No.211042
Dimension a500 mm
Dimension b-Ø16 mm
Distance bolt - gate40 mm
Fastening typeZAUFSCHR

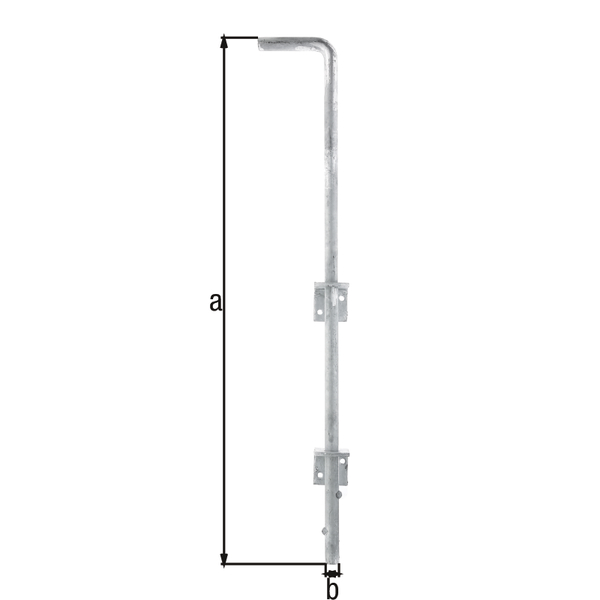

Article-No.211066
Dimension a600 mm
Dimension b-Ø16 mm
Distance bolt - gate40 mm
Fastening typeZAUFSCHR
- with two guide brackets
- Put the lower guide onto the bar between the two lugs and screw it on high enough so that its upper lug rests on the lower guide and the bolt end does not extend past the gate when the bar is open.
