• Garden gate fastening latch for high gates or woven fence doors, with countersunk screw holes, with door latch, Material: raw steel, Surface: galvanised, thick-film passivated, Length: 155 mm, Rosette dia.: 60 mm, Plate height: 70 mm, Height of hook: 60 mm, Pin length: 77 mm, No. of holes: 3 / 2 / 6, Hole: Ø5.2 / Ø5.5 / Ø4.5 mm
  • Garden gate fastening latch for high gates or woven fence doors, with countersunk screw holes, with door latch, Material: raw steel, Surface: galvanised, thick-film passivated, Length: 155 mm, Rosette dia.: 60 mm, Plate height: 70 mm, Height of hook: 60 mm, Pin length: 77 mm, No. of holes: 3 / 2 / 6, Hole: Ø5.2 / Ø5.5 / Ø4.5 mm

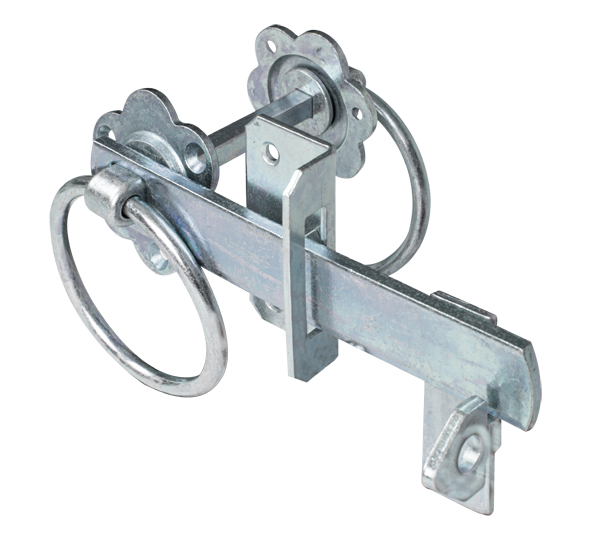

Garden gate fastening latch for high gates or woven fence doors

with door latch
Art.-No. 210250

raw steel, galvanised, thick-film passivated

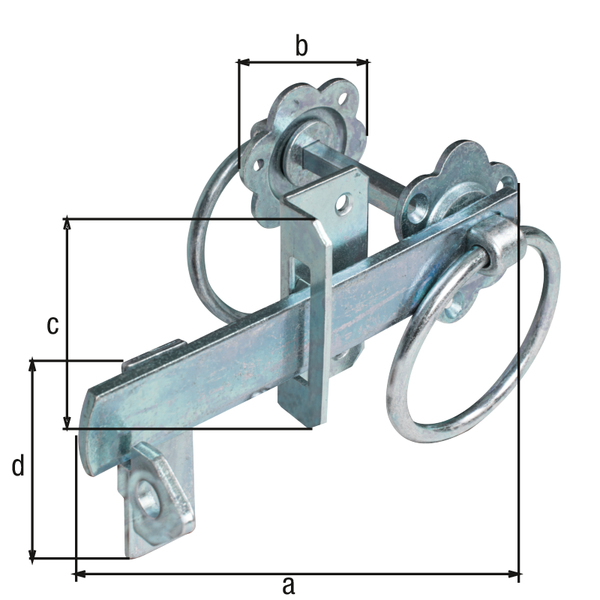

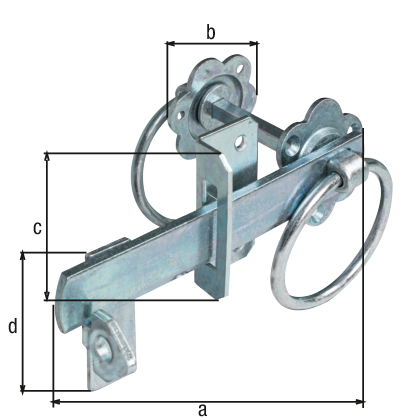

Dimension a:
155 mm
Dimension b-Ø:
60 mm
Dimension c:
70 mm
Dimension d:
60 mm
Pin length:
77 mm
Fastening type:
ZAUFSCHR
Quantity x hole Ø:
3 x Ø5.2 mm
Quantity x hole Ø:
2 x Ø5.5 mm
Quantity x hole Ø:
6 x Ø4.5 mm
Material/surface:
raw steel, galvanised, thick-film passivated
UNIT:
1
PU:
Piece
Systems:
TORZU
Surface / Colour:
VERZ
Material:
Steel
:
155 mm
Weight per UQ (kg):
0.555 kg
  • can be opened and closed from inside and outside

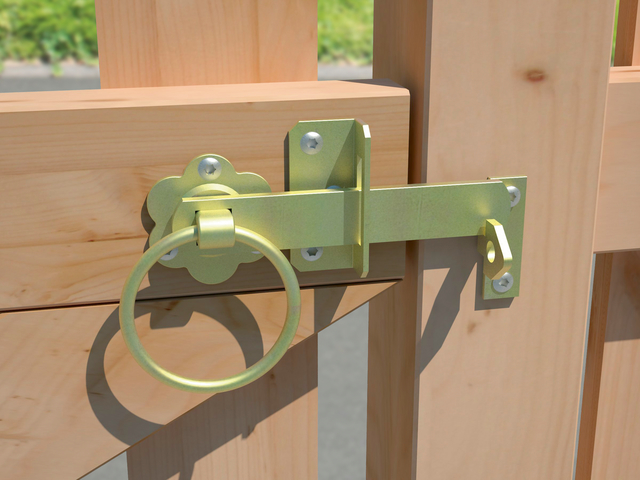

  • Both rotating actuation rings are positioned in rosettes and are connected to each other via a square pin for wood thicknesses of up to 60 mm. The bolt is guided on one side through a guide plate, which is screwed to the gate frame and locked in the hook supplied.
