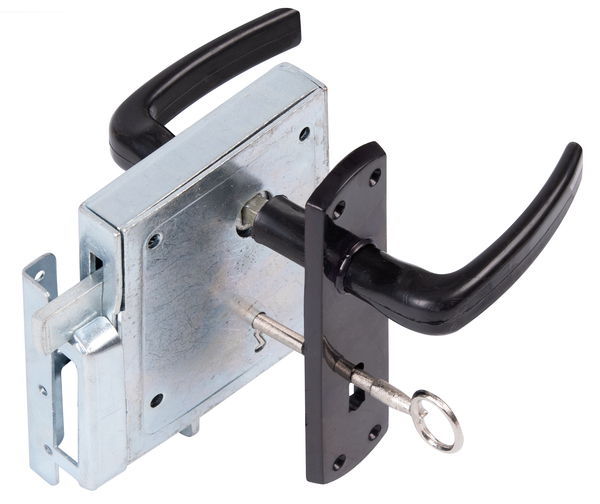

Sash lock box

Art.-No. 901554

raw steel, blue galvanised

Item description:
With night lock, perforation for warded lock

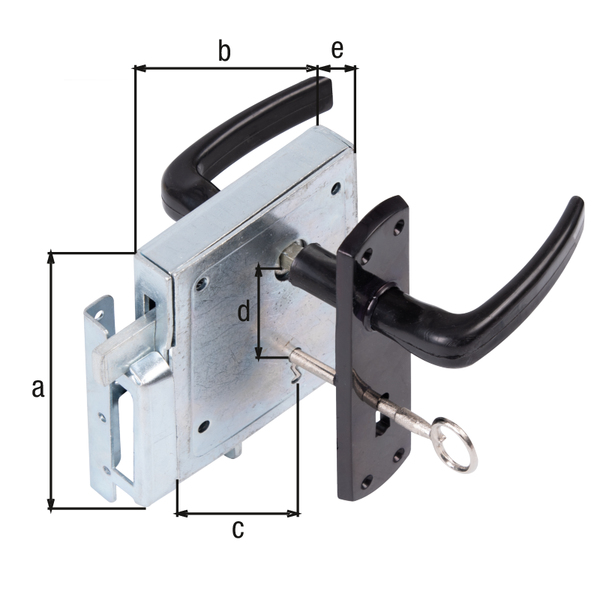

Dimension a:
100 mm
Dimension b:
105 mm
Dimension c:
60 mm
Dimension d:
51 mm
Dimension e:
22 mm
Bolt recess:
12 / 24 mm
Socket:
8 x 8 mm
Fastening type:
ZAUFSCHR
Material/surface:
raw steel, blue galvanised
UNIT:
5
PU:
Card
Content value per PU:
1
Content unit per PU:
Piece
Systems:
SCHLS
Surface / Colour:
VERZ
Material:
Steel
:
105 mm
:
100 mm
:
22 mm
Weight per UQ (kg):
0.78 kg
  • suitable for key nos. 216924, 216931, 216948, 216979, 216993, 216986
  • perforation for warded lock
  • with lifting latch
  • applicable DIN left and right
  • 2-level
  • Stop, handle, narrow lock case, long plate and one key included.
