• Sash lock box, Material: raw steel, Surface: blue galvanised, Height: 118 mm, Width: 100 mm, Size back set: 60 mm, Distance: 55 mm, Depth: 20 mm, Item description: With night lock, perforation for warded lock, Bolt recess: 14 / 28 mm, Socket: 8 x 8 mm, No. of holes: 4 / 4 / 6, Hole: Ø5.5 / Ø4.2 / Ø4.5 mm
  • Sash lock box, Material: raw steel, Surface: blue galvanised, Height: 118 mm, Width: 100 mm, Size back set: 60 mm, Distance: 55 mm, Depth: 20 mm, Item description: With night lock, perforation for warded lock, Bolt recess: 14 / 28 mm, Socket: 8 x 8 mm, No. of holes: 4 / 4 / 6, Hole: Ø5.5 / Ø4.2 / Ø4.5 mm
  • Sash lock box, Material: raw steel, Surface: blue galvanised, Height: 118 mm, Width: 100 mm, Size back set: 60 mm, Distance: 55 mm, Depth: 20 mm, Item description: With night lock, perforation for warded lock, Bolt recess: 14 / 28 mm, Socket: 8 x 8 mm, No. of holes: 4 / 4 / 6, Hole: Ø5.5 / Ø4.2 / Ø4.5 mm

Sash lock box

Art.-No. 214845

raw steel, blue galvanised

Item description:
With night lock, perforation for warded lock

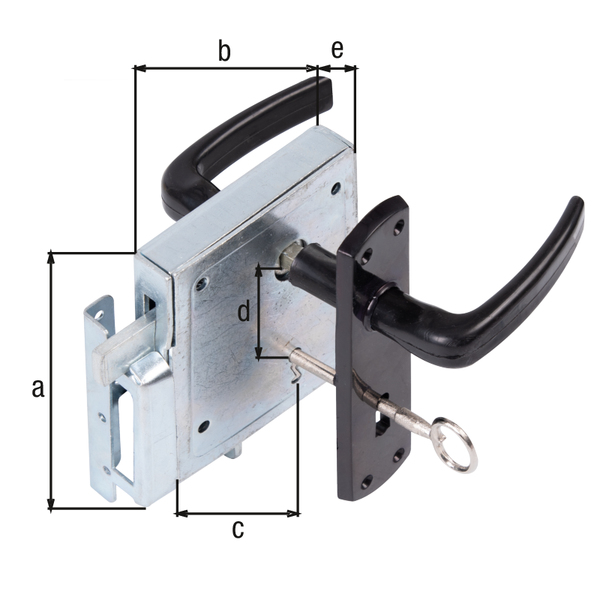

Dimension a:
118 mm
Dimension b:
100 mm
Dimension c:
60 mm
Dimension d:
55 mm
Dimension e:
20 mm
Bolt recess:
14 / 28 mm
Socket:
8 x 8 mm
Fastening type:
ZAUFSCHR
Quantity x hole Ø:
4 x Ø5.5 mm
Quantity x hole Ø:
4 x Ø4.2 mm
Quantity x hole Ø:
6 x Ø4.5 mm
Material/surface:
raw steel, blue galvanised
UNIT:
1
PU:
Piece
Systems:
SCHLS
Surface / Colour:
VERZ
Material:
Steel
:
100 mm
:
118 mm
:
20 mm
Weight per UQ (kg):
0.8 kg
  • suitable for key nos. 214791, 214807, 214814, 214821, 214838 and 214784
  • perforation for warded lock
  • with lifting latch
  • applicable DIN left and right
  • 2-level
  • Stop, handle, narrow lock case, long plate and one key included.
