• Window grille Basic II in customised dimensions, for mounting in the window reveal or on the outside wall, Material: raw steel, Surface: hot-dip galvanised passivated, mounting on the wall, reveal width: 320 - 570 mm, reveal height: 400 - 800 mm, Frame width: 400 - 650 mm, Frame height: 400 - 800 mm, Frame thickness: 20 x 20 mm, Filler material Ø: 12 mm, Number of attachment points: 4, Traverse: without, 15-year warranty against rusting through

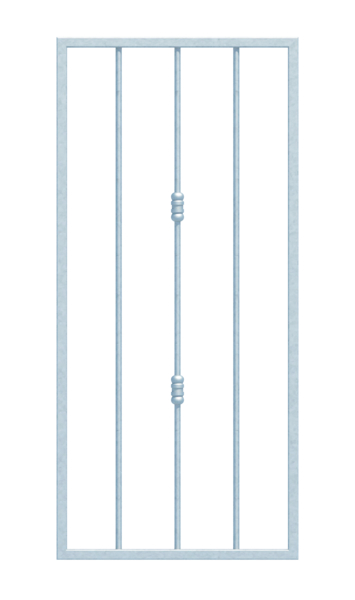

Window grille Basic II in customised dimensions

for mounting in the window reveal or on the outside wall
Art.-No. 564322

12 Variants
reveal width:
320 - 570 mm
reveal height:
400 - 800 mm
Frame width:
400 - 650 mm
Frame height:
400 - 800 mm
Frame thickness:
20 x 20 mm
Note on filler material:
Round bar
Filler material Ø:
12 mm
Number of attachment points:
4
Traverse:
without
:
15 years
Material/surface:
raw steel, hot-dip galvanised passivated, mounting on the wall
UNIT:
1
PU:
Piece
Systems:
Basic II
Surface / Colour:
FVZ
Weight per UQ (kg):
6.126 kg
Article-No.
reveal width
reveal height
Frame width
Frame height
Action
Article-No.564322
reveal width320 - 570 mm
reveal height400 - 800 mm
Frame width400 - 650 mm
Frame height400 - 800 mm
Article-No.564339
reveal width571 - 945 mm
reveal height400 - 800 mm
Frame width651 - 1025 mm
Frame height400 - 800 mm
Article-No.564346
reveal width946 - 1320 mm
reveal height400 - 800 mm
Frame width1026 - 1400 mm
Frame height400 - 800 mm
Article-No.564353
reveal width1321 - 1820 mm
reveal height400 - 800 mm
Frame width1401 - 1900 mm
Frame height400 - 800 mm
Article-No.564360
reveal width320 - 570 mm
reveal height801 - 1400 mm
Frame width400 - 650 mm
Frame height801 - 1400 mm
Article-No.564377
reveal width571 - 945 mm
reveal height801 - 1400 mm
Frame width651 - 1025 mm
Frame height801 - 1400 mm
Article-No.564384
reveal width946 - 1320 mm
reveal height801 - 1400 mm
Frame width1026 - 1400 mm
Frame height801 - 1400 mm
Article-No.564391
reveal width1321 - 1820 mm
reveal height801 - 1400 mm
Frame width1401 - 1900 mm
Frame height801 - 1400 mm
Article-No.564407
reveal width320 - 570 mm
reveal height1401 - 2000 mm
Frame width400 - 650 mm
Frame height1401 - 2000 mm
Article-No.564414
reveal width571 - 945 mm
reveal height1401 - 2000 mm
Frame width651 - 1025 mm
Frame height1401 - 2000 mm
Article-No.564421
reveal width946 - 1320 mm
reveal height1401 - 2000 mm
Frame width1026 - 1400 mm
Frame height1401 - 2000 mm
Article-No.564438
reveal width1321 - 1820 mm
reveal height1401 - 2000 mm
Frame width1401 - 1900 mm
Frame height1401 - 2000 mm
  • Window grille customised production on request
  • please indicate the reveal width and the reveal height as dimensions
  • When mounting the window grille to the wall, the window grille must be wide enough so that the fixing drill holes are at least 80 mm from the window reveal. Otherwise the masonry may break.
  • Please order the fastening and screw sets separately.
