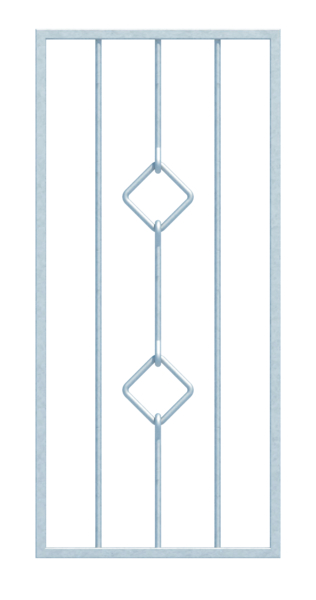

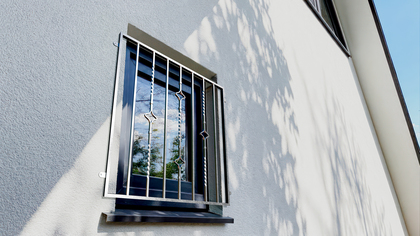

Window grille Köln in customised dimensions
for mounting in the window reveal or on the outside wall
Art.-No. 564575
- reveal width:
- 320 - 570 mm
- reveal height:
- 610 - 1000 mm
- Frame width:
- 400 - 650 mm
- Frame height:
- 610 - 1000 mm
- Frame thickness:
- 20 x 20 mm
- Note on filler material:
- Round bar
- Filler material Ø:
- 12 mm

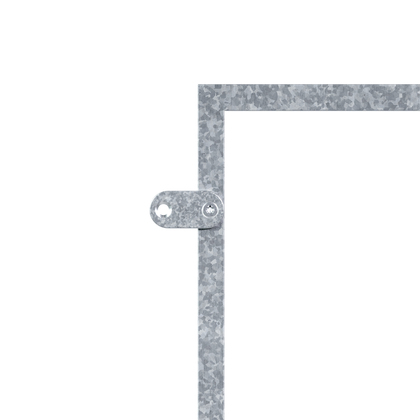

- Number of attachment points:
- 4
- Traverse:
- without
- :
- 15 years
- Material/surface:
- raw steel, hot-dip galvanised passivated, mounting on the wall
- UNIT:
- 1
- PU:
- Piece
- Systems:
- Köln
- Surface / Colour:
- FVZ
- Weight per UQ (kg):
- 7.347 kg
Article-No.
reveal width
reveal height
Frame width
Frame height
Action
Article-No.564575
reveal width320 - 570 mm
reveal height610 - 1000 mm
Frame width400 - 650 mm
Frame height610 - 1000 mm
Article-No.564582
reveal width571 - 945 mm
reveal height610 - 1000 mm
Frame width651 - 1025 mm
Frame height610 - 1000 mm
Article-No.564599
reveal width946 - 1195 mm
reveal height610 - 1000 mm
Frame width1026 - 1275 mm
Frame height610 - 1000 mm
Article-No.564605
reveal width1196 - 1445 mm
reveal height610 - 1000 mm
Frame width1276 - 1525 mm
Frame height610 - 1000 mm
- Window grille customised production on request
- please indicate the reveal width and the reveal height as dimensions
- When mounting the window grille to the wall, the window grille must be wide enough so that the fixing drill holes are at least 80 mm from the window reveal. Otherwise the masonry may break.
- Please order the fastening and screw sets separately.
