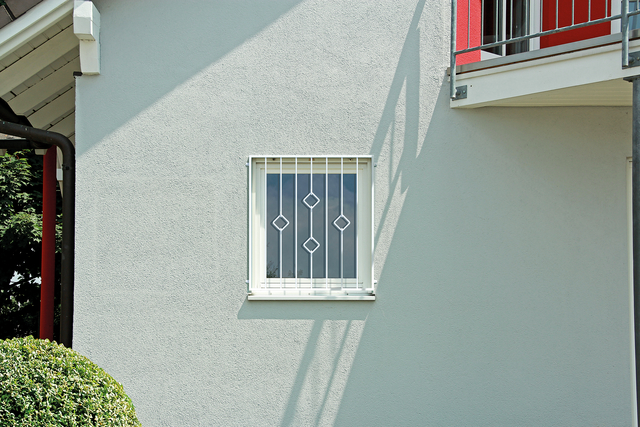

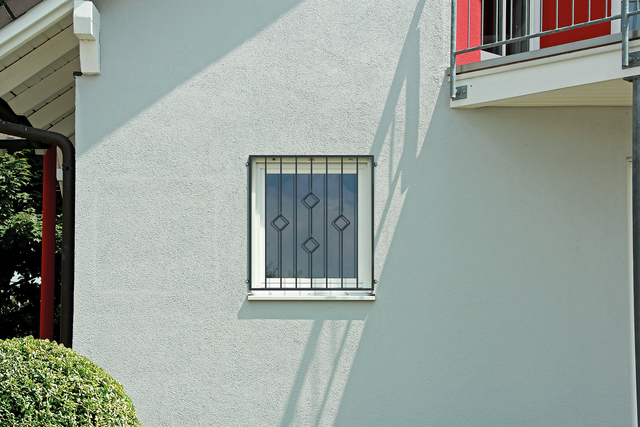

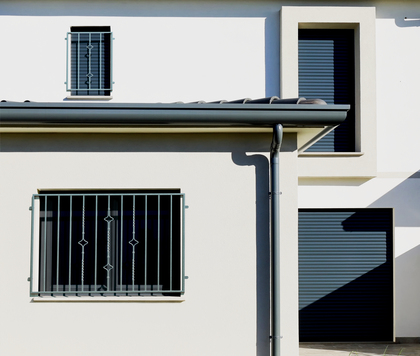

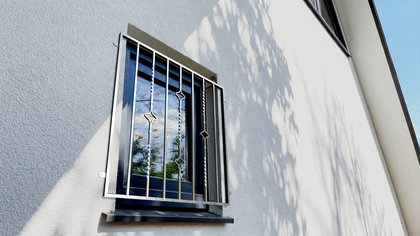

Window grille Köln in customised dimensions
for mounting in the window reveal or on the outside wall
Art.-No. 564599

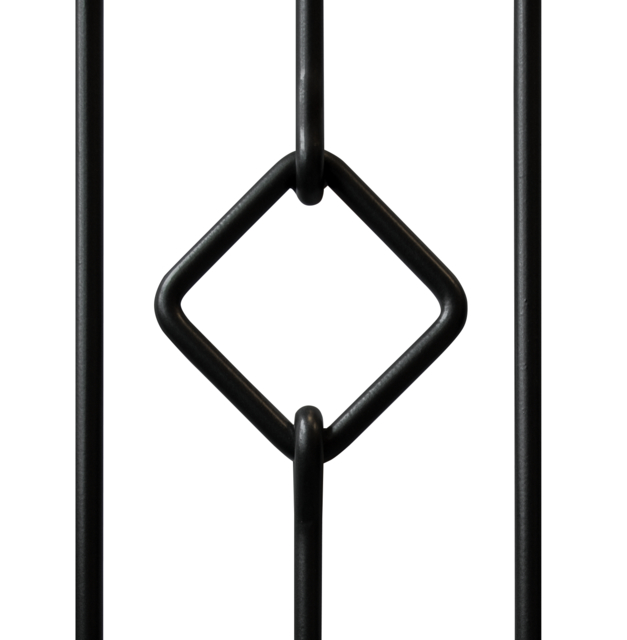

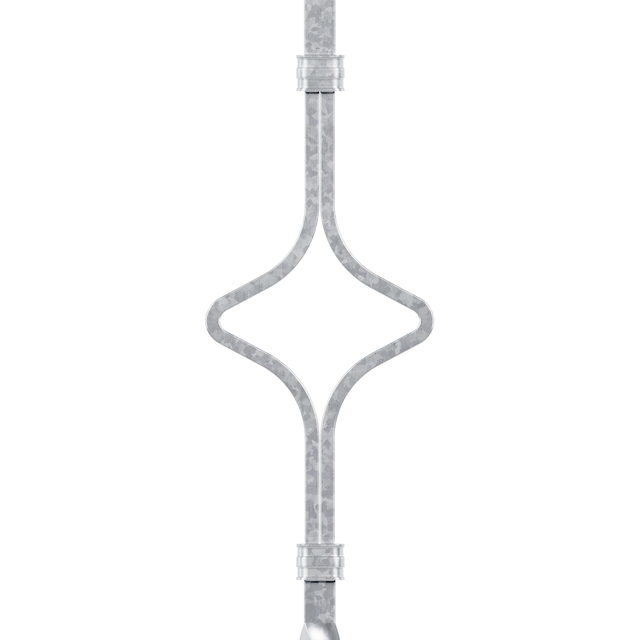

Clear geometric Decorative elements and the lack of additional ornamentation make the "Cologne" Window grilles the first choice if the façade also has a linear and geometric look, while the high-quality hot-dip galvanizing ensures long-lasting weather resistance and the special locking screws prevent the grille from being removed quickly.
- reveal width:
- 946 - 1195 mm
- reveal height:
- 610 - 1000 mm
- Frame width:
- 1026 - 1275 mm
- Frame height:
- 610 - 1000 mm
- Frame thickness:
- 20 x 20 mm
- Note on filler material:
- Round bar
- Filler material Ø:
- 12 mm
- Traverse:
- without

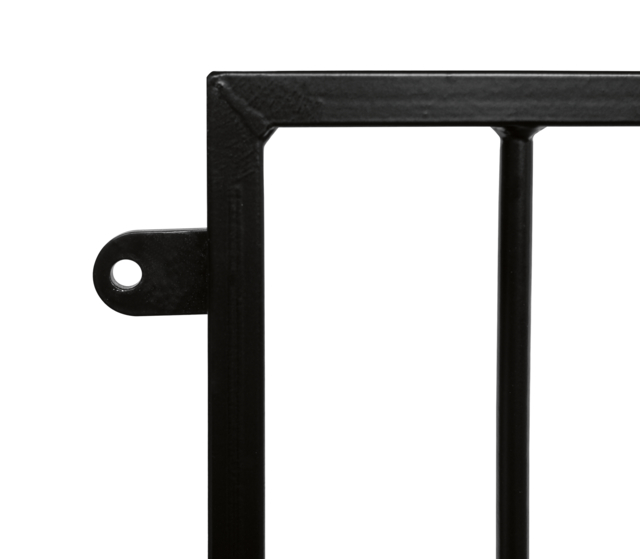

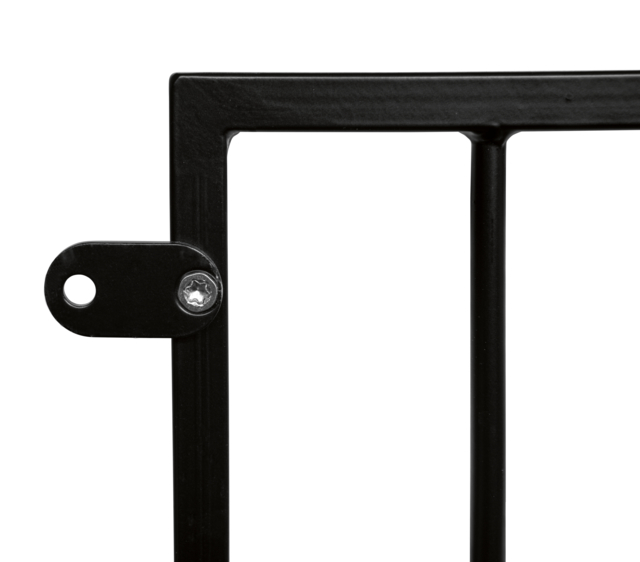

- Number of attachment points:
- 4
- Guarantee articles:
- 15 years
- Material/surface:
- raw steel, hot-dip galvanised passivated, mounting on the wall
- Systems:
- Köln
- Surface / Colour:
- hot-dip galvanised
- Weight per UQ (kg):
- 14.411 kg
- Content Unit:
- 1 Piece
Article-No.
reveal width
reveal height
Frame width
Frame height
Action
Article-No.
564575
reveal width
320 - 570 mm
reveal height
610 - 1000 mm
Frame width
400 - 650 mm
Frame height
610 - 1000 mm
Article-No.
564582
reveal width
571 - 945 mm
reveal height
610 - 1000 mm
Frame width
651 - 1025 mm
Frame height
610 - 1000 mm
Article-No.
564599
reveal width
946 - 1195 mm
reveal height
610 - 1000 mm
Frame width
1026 - 1275 mm
Frame height
610 - 1000 mm
Article-No.
564605
reveal width
1196 - 1445 mm
reveal height
610 - 1000 mm
Frame width
1276 - 1525 mm
Frame height
610 - 1000 mm
- Window grille customised production on request
- please indicate the reveal width and the reveal height as dimensions
- When mounting the window grille to the wall, the window grille must be wide enough so that the fixing drill holes are at least 80 mm from the window reveal. Otherwise the masonry may break.
- Please order the fastening and screw sets separately.
