• Window grille Hamburg in customised dimensions, for mounting in the window reveal or on the outside wall, Material: raw steel, Surface: hot-dip galvanised passivated, mounting on the wall, reveal width: 571 - 945 mm, reveal height: 601 - 1000 mm, Frame width: 651 - 1025 mm, Frame height: 601 - 1000 mm, Frame thickness: 20 x 20 mm, Filler material Ø: 12 mm, Number of attachment points: 4, Traverse: without, 15-year warranty against rusting through

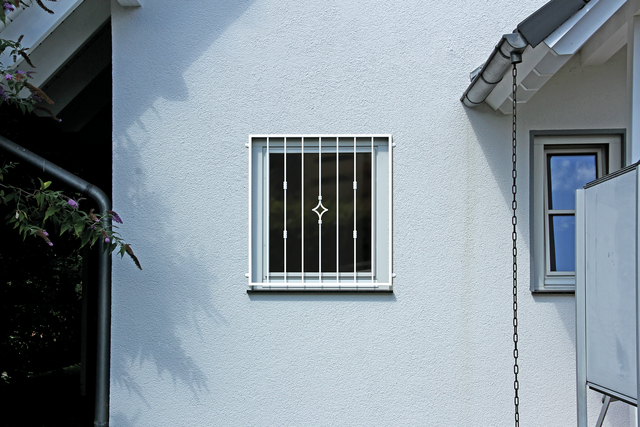

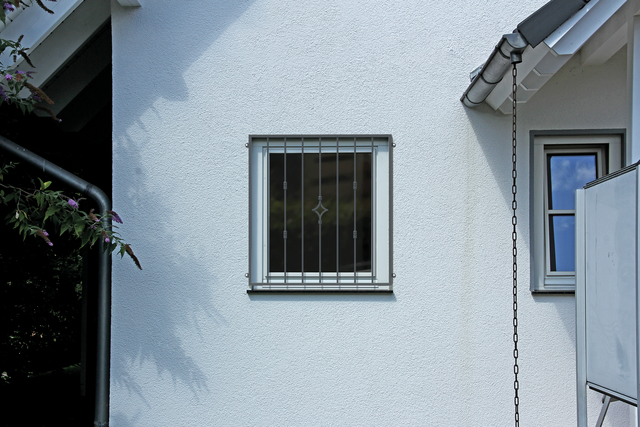

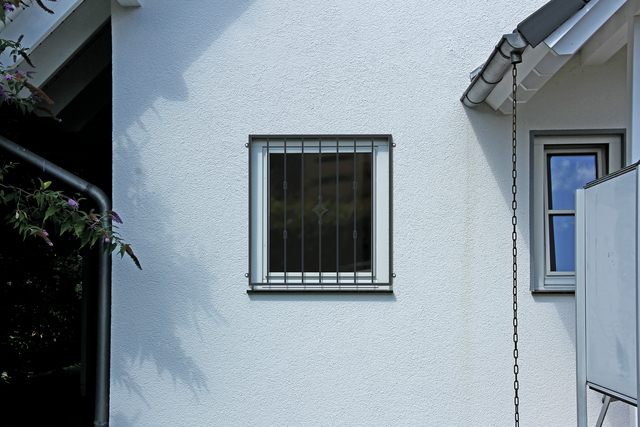

Window grille Hamburg in customised dimensions

for mounting in the window reveal or on the outside wall
Art.-No. 564513

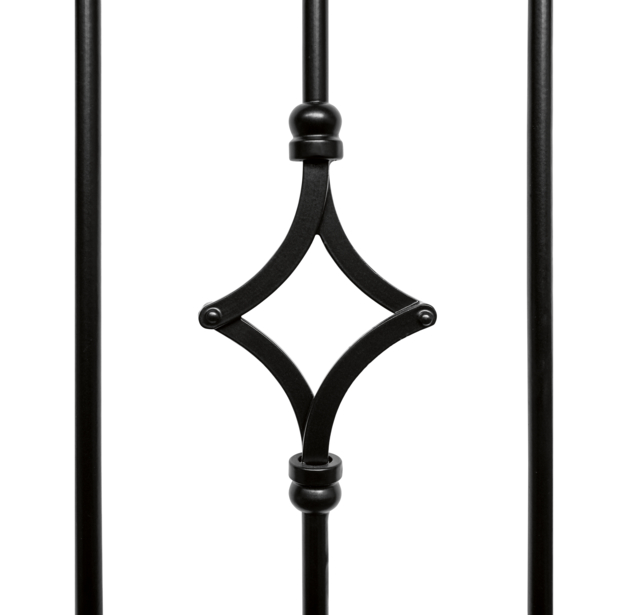

Borrowing from the appearance of the "Basic II" Window grilles model, the "Hamburg" model is complemented by a small and discreet ornament in the center of the window grille. This little extra makes all the difference. Straight when two or more Window grilles are mounted next to each other, they achieve a beautiful horizontal line, while the high-quality hot-dip Galvanising ensures long-lasting weather resistance and the special locking screws prevent the grille from being removed quickly.

6 Variants
reveal width:
571 - 945 mm
reveal height:
601 - 1000 mm
Frame width:
651 - 1025 mm
Frame height:
601 - 1000 mm
Frame thickness:
20 x 20 mm
Note on filler material:
Round bar
Filler material Ø:
12 mm
Traverse:
without
Number of attachment points:
4
Guarantee articles:
15 years
Material/surface:
raw steel, hot-dip galvanised passivated, mounting on the wall
Systems:
Hamburg
Surface / Colour:
hot-dip galvanised
Weight per UQ (kg):
11.557 kg
Content Unit:
1 Piece
  • Window grille customised production on request
  • please indicate the reveal width and the reveal height as dimensions

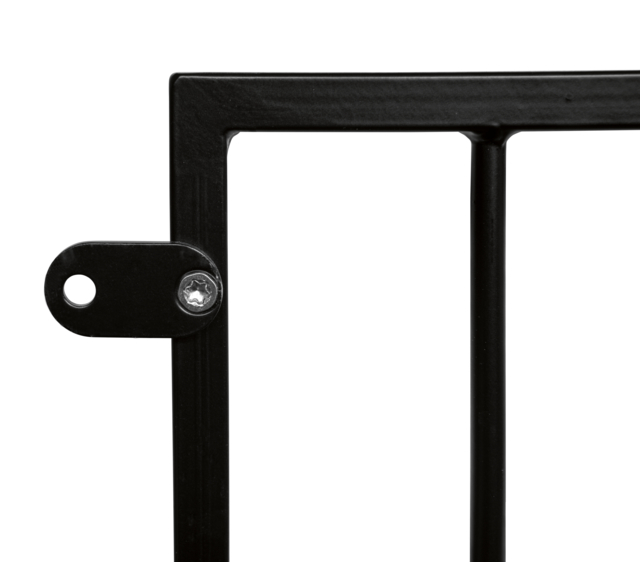

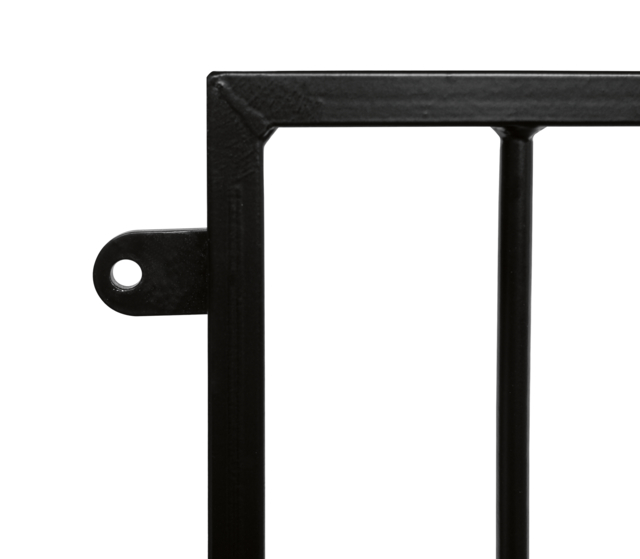

  • When mounting the window grille to the wall, the window grille must be wide enough so that the fixing drill holes are at least 80 mm from the window reveal. Otherwise the masonry may break.
  • Please order the fastening and screw sets separately.
