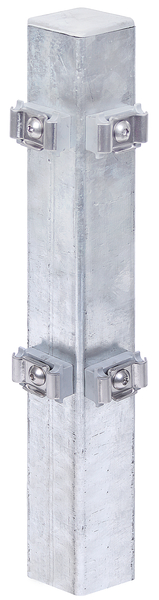

Corner post incl. clamping plate, drilling distance 400 mm
the accessories for each post are included inside the delivery package
Art.-No. 677145
Double bar grating panels can be mounted on two sides of the corner post. This allows a 90° corner to be formed within the fence run. The square post type ensures that the double bar grating panels are permanently and securely attached to the post. We give a Guarantee on the high-quality surface finish. Guarantee details can be found on the article.
- Length:
- 1500 mm
- For mat height:
- 1000 mm
- Post thickness:
- 60 x 60 mm
- Fastening type:
- for setting in concrete
- Guarantee articles:
- 15 years
- Material/surface:
- raw steel, hot-dip galvanised, for setting in concrete
- Systems:
- Post,Double bar mat
- Surface / Colour:
- hot-dip galvanised
- Weight per UQ (kg):
- 5.660 kg
- Content Unit:
- 1 Piece
Article-No.
Length
For mat height
Post thickness
Fastening type
Action
Article-No.
677121
Length
1000 mm
For mat height
600 mm
Post thickness
60 x 60 mm
Fastening type
for setting in concrete
Article-No.
677138
Length
1200 mm
For mat height
800 mm
Post thickness
60 x 60 mm
Fastening type
for setting in concrete
Article-No.
677145
Length
1500 mm
For mat height
1000 mm
Post thickness
60 x 60 mm
Fastening type
for setting in concrete
Article-No.
677152
Length
1750 mm
For mat height
1200 mm
Post thickness
60 x 60 mm
Fastening type
for setting in concrete
Article-No.
677169
Length
2000 mm
For mat height
1400 mm
Post thickness
60 x 60 mm
Fastening type
for setting in concrete
Article-No.
677176
Length
2250 mm
For mat height
1600 mm
Post thickness
60 x 60 mm
Fastening type
for setting in concrete
Article-No.
677183
Length
2400 mm
For mat height
1800 mm
Post thickness
60 x 60 mm
Fastening type
for setting in concrete
Article-No.
677190
Length
2600 mm
For mat height
2000 mm
Post thickness
60 x 60 mm
Fastening type
for setting in concrete
Article-No.
677213
Length
3000 mm
For mat height
2400 mm
Post thickness
60 x 60 mm
Fastening type
for setting in concrete
- If it is required to screw on to the posts, then a post support must be used.
- Mounted trestles and attached plastic caps, stainless steel clamping plates and pan-head screws with 5.5 mm safety hexagon sockets included.
- Allen keys not included. Order separately under article no. 657048.
