• Bolt lock with spring, with round knob, type Pistolet, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, without staple, Length: 176 mm, Plate length: 85 mm, Plate width: 40 mm, Bolt-Ø: 14 mm, No. of holes: 4, Hole: Ø6 mm
  • Bolt lock with spring, with round knob, type Pistolet, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, without staple, Length: 176 mm, Plate length: 85 mm, Plate width: 40 mm, Bolt-Ø: 14 mm, No. of holes: 4, Hole: Ø6 mm

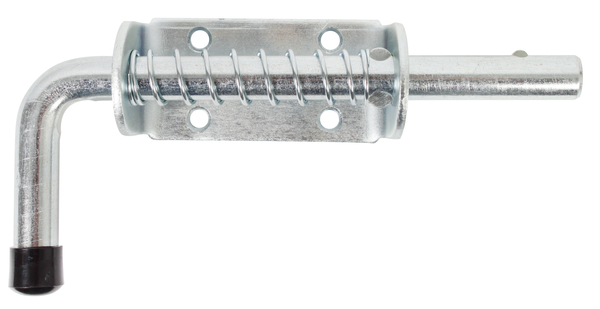

Bolt lock with spring, with round knob, type Pistolet

with countersunk screw holes
Art.-No. 204815

raw steel, galvanised, thick-film passivated, without staple

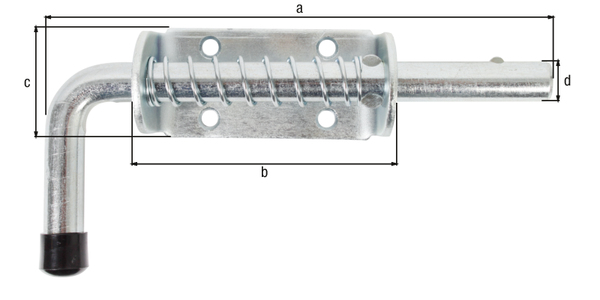

Dimension a:
176 mm
Dimension b:
85 mm
Dimension c:
40 mm
Dimension d-Ø:
14 mm
Extension length:
58 mm
Quantity x hole Ø:
4 x Ø6 mm
Material/surface:
raw steel, galvanised, thick-film passivated, without staple
Systems:
Bolts
Surface / Colour:
DKSCHTZ
Material:
Steel
Panel width:
40 mm
Length:
176 mm
Panel length:
85 mm
:
14 mm
Weight per UQ (kg):
0.412 kg
Contents Unit:
5 Piece
  • The spring and the lug keep the bolt in the raised position.
