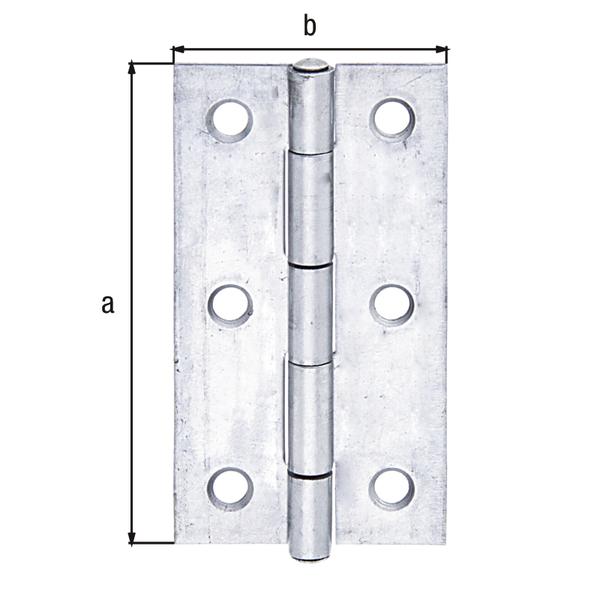

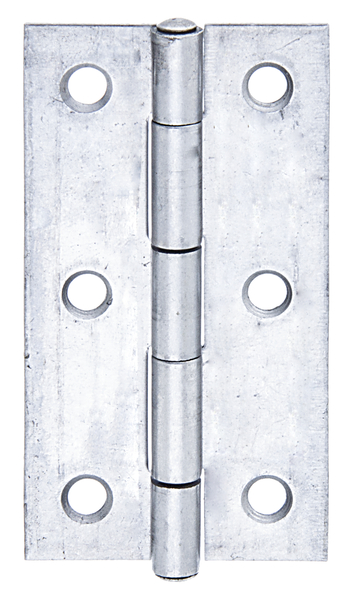

Hinge, narrow
with countersunk screw holes
Art.-No. 361181
- Dimension a:
- 64 mm
- Dimension b:
- 34 mm
- Material thickness:
- 1 mm
- Quantity x hole Ø:
- 6 x Ø4.3 mm
- Material/surface:
- stainless steel, with riveted stainless steel pin
- Surface / Colour:
- V2A
- Material:
- Stainless steel
- Length:
- 64 mm
- Width:
- 34 mm
- Type:
- rolled
- Weight per UQ (kg):
- 0.029 kg
- Contents Unit:
- 10 Piece
Article-No.
Dimension a
Dimension b
Material thickness
Quantity x hole Ø
Action
Article-No.
361181
Dimension a
64 mm
Dimension b
34 mm
Material thickness
1 mm
Quantity x hole Ø
6 x Ø4.3 mm

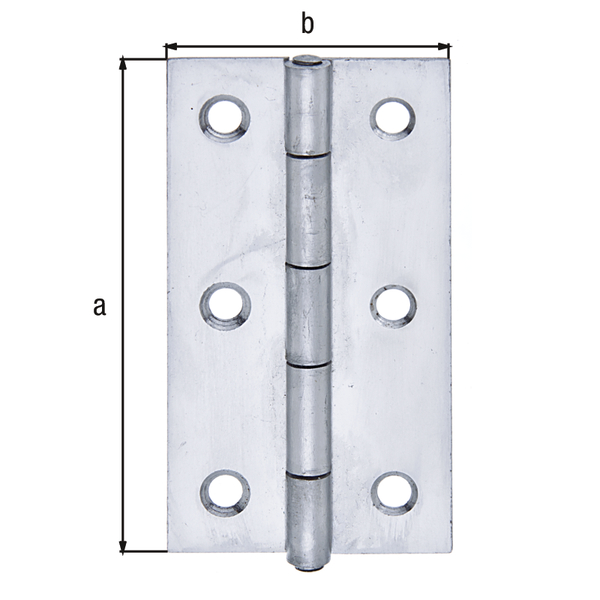

Article-No.
361198
Dimension a
82 mm
Dimension b
44 mm
Material thickness
1.3 mm
Quantity x hole Ø
6 x Ø5.2 mm
