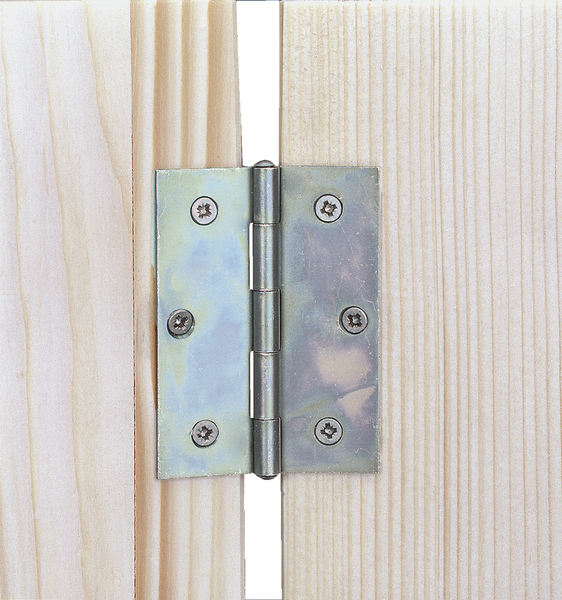

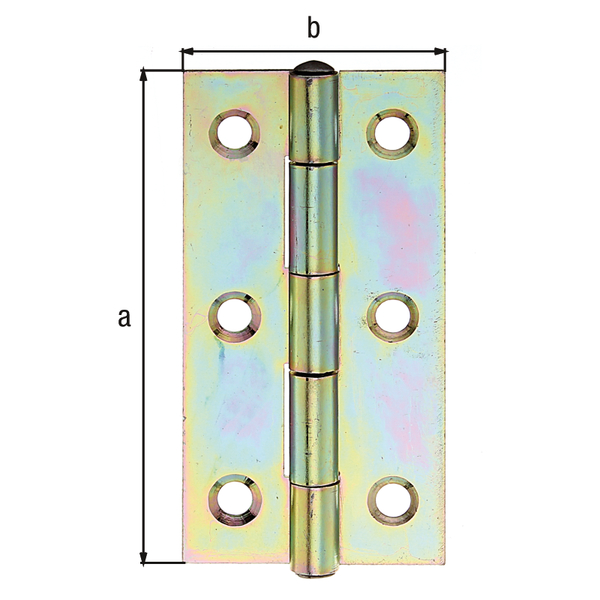

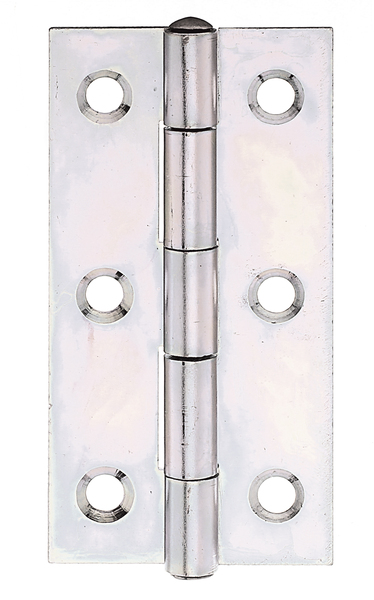

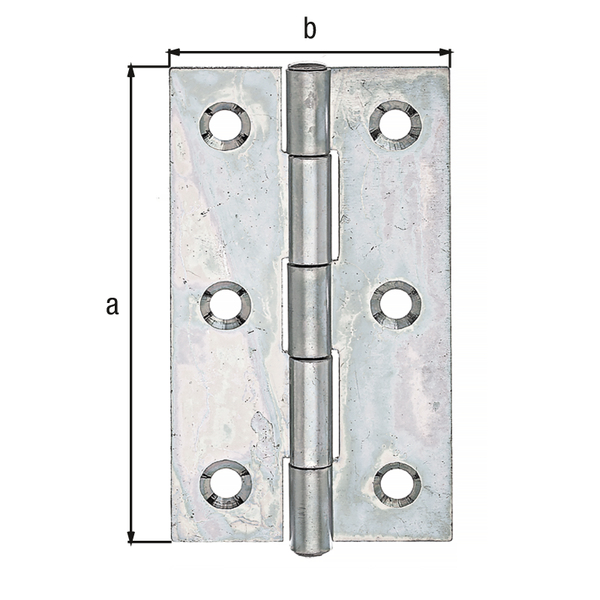

Hinge, narrow
with countersunk screw holes
Art.-No. 345402
- Dimension a:
- 70 mm
- Dimension b:
- 35.4 mm
- Material thickness:
- 1 mm
- Quantity x hole Ø:
- 6 x Ø4.5 mm
- Material/surface:
- raw steel, sendzimir galvanised, with riveted stainless steel pin
- Surface / Colour:
- VERZ
- Material:
- Steel
- Length:
- 70 mm
- Width:
- 35,4 mm
- Type:
- rolled
- Weight per UQ (kg):
- 0.034 kg
- Contents Unit:
- 20 Piece
Article-No.
Dimension a
Dimension b
Material thickness
Quantity x hole Ø
Action

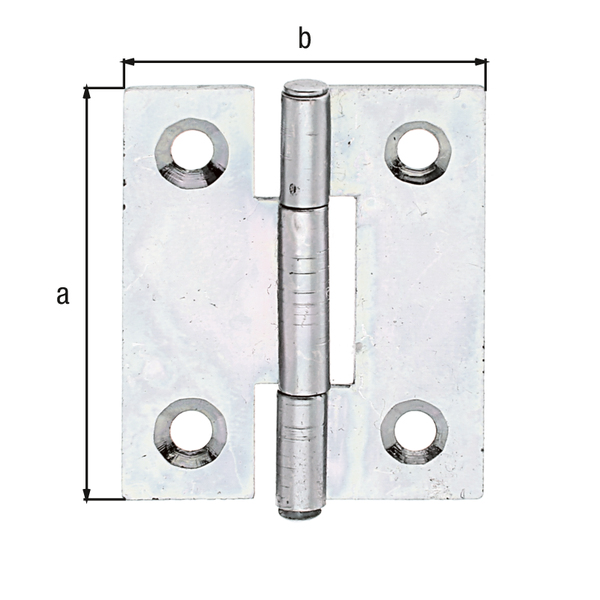

Article-No.
345365
Dimension a
31.5 mm
Dimension b
25.8 mm
Material thickness
0.75 mm
Quantity x hole Ø
4 x Ø3 mm

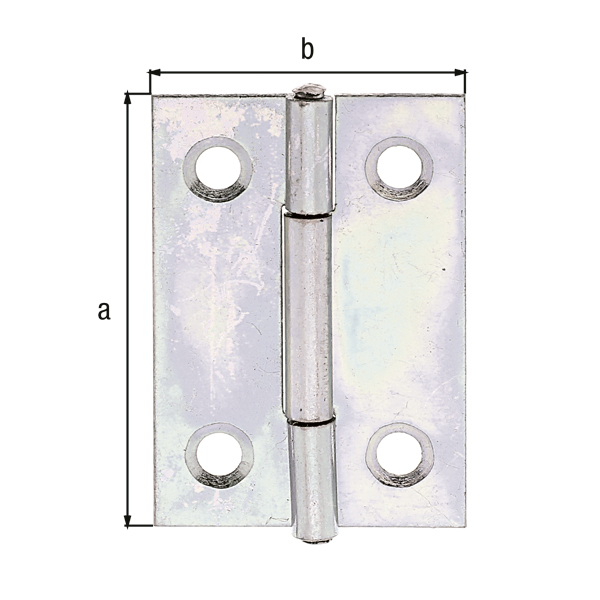

Article-No.
345372
Dimension a
38 mm
Dimension b
26 mm
Material thickness
0.75 mm
Quantity x hole Ø
4 x Ø3.7 mm

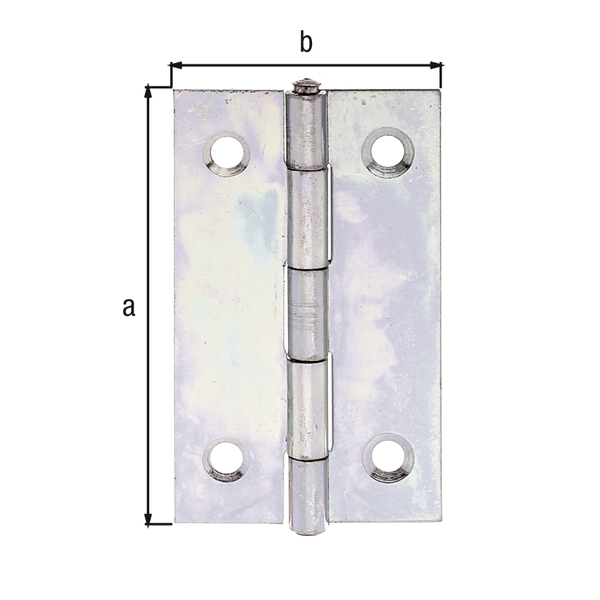

Article-No.
345389
Dimension a
51 mm
Dimension b
30 mm
Material thickness
0.75 mm
Quantity x hole Ø
4 x Ø3.7 mm

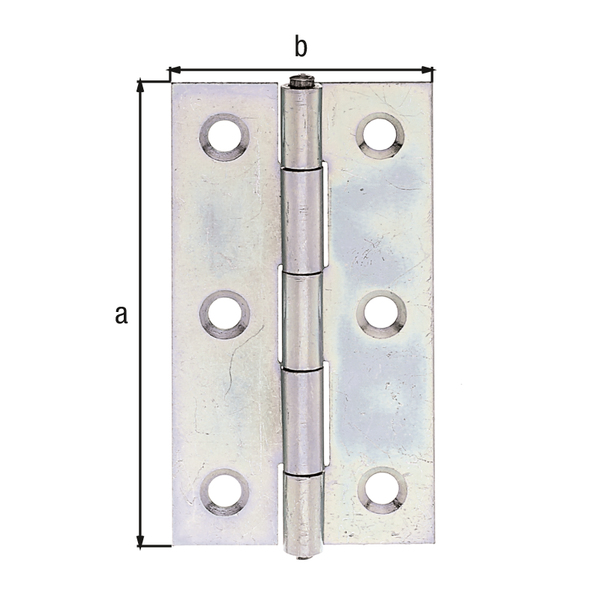

Article-No.
345396
Dimension a
60 mm
Dimension b
34 mm
Material thickness
1 mm
Quantity x hole Ø
6 x Ø4.3 mm
Article-No.
345402
Dimension a
70 mm
Dimension b
35.4 mm
Material thickness
1 mm
Quantity x hole Ø
6 x Ø4.5 mm
Article-No.
345419
Dimension a
80 mm
Dimension b
41 mm
Material thickness
1.20 mm
Quantity x hole Ø
6 x Ø5.2 mm
Article-No.
345426
Dimension a
100 mm
Dimension b
52 mm
Material thickness
1.25 mm
Quantity x hole Ø
8 x Ø5.2 mm
