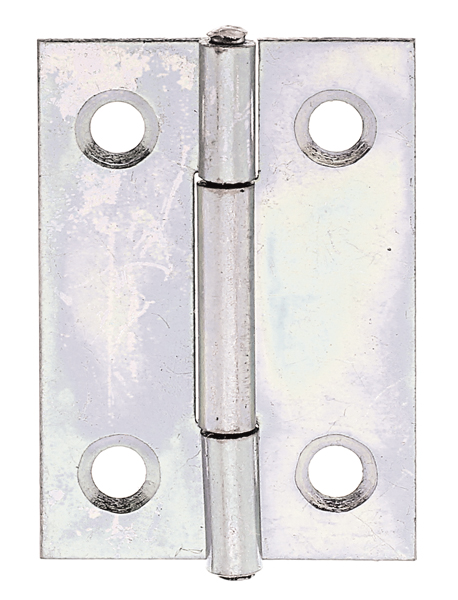

Hinge, narrow
with countersunk screw holes
Art.-No. 345372

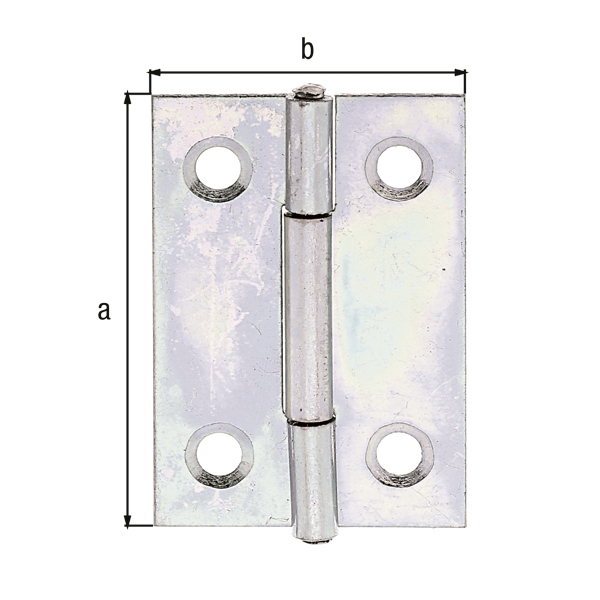

- Dimension a:
- 38 mm
- Dimension b:
- 26 mm
- Material thickness:
- 0.75 mm
- Quantity x hole Ø:
- 4 x Ø3.7 mm
- Material/surface:
- raw steel, yellow galvanised, with riveted stainless steel pin
- UNIT:
- 50
- PU:
- Piece
- Surface / Colour:
- VERZ
- Material:
- Steel
- :
- 38 mm
- :
- 26 mm
- Type:
- rolled
- Weight per UQ (kg):
- 0.008 kg
Article-No.
Dimension a
Dimension b
Material thickness
Quantity x hole Ø
Action
Article-No.345358
Dimension a25.5 mm
Dimension b22 mm
Material thickness0.75 mm
Quantity x hole Ø4 x Ø3 mm
Article-No.345372
Dimension a38 mm
Dimension b26 mm
Material thickness0.75 mm
Quantity x hole Ø4 x Ø3.7 mm
Article-No.345402
Dimension a70 mm
Dimension b35 mm
Material thickness1 mm
Quantity x hole Ø6 x Ø4.5 mm
