• U post support with concrete anchor made of T-iron, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210, Clear width: 71 mm, Height: 200 mm, Length of concrete anchor: 200 mm, Depth: 50 mm, Material thickness: 4.00 mm, No. of holes: 4, Hole: Ø11 mm
  • U post support with concrete anchor made of T-iron, Material: raw steel, Surface: hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210, Clear width: 71 mm, Height: 200 mm, Length of concrete anchor: 200 mm, Depth: 50 mm, Material thickness: 4.00 mm, No. of holes: 4, Hole: Ø11 mm

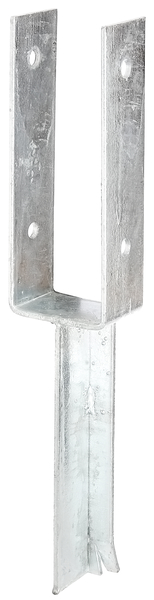

U post support with concrete anchor made of T-iron

Art.-No. 216740

raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210

3 Variants

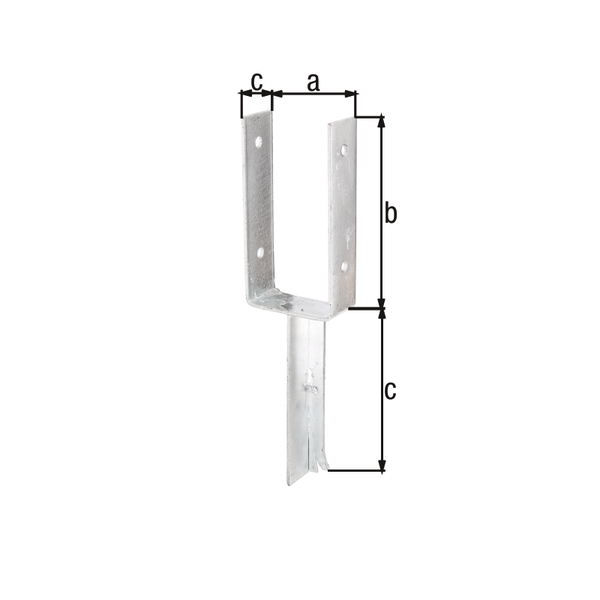

Dimension a:
71 mm
Dimension b:
200 mm
Dimension c:
200 mm
Dimension d:
50 mm
Concrete anchor:
40 x 4 mm
Fastening type:
ZEINB
Material thickness:
4 mm
Quantity x hole Ø:
4 x Ø11 mm
Material/surface:
raw steel, hot-dip galvanised, for setting in concrete, with CE marking in accordance with ETA-10/0210
UNIT:
1
PU:
Piece
Surface / Colour:
FVZ
Material:
Steel
Approval:
Europ.techn.app. ETA-10/0210
:
71 mm
:
200 mm
:
50 mm
Weight per UQ (kg):
1.209 kg
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.216740
Dimension a71 mm
Dimension b200 mm
Dimension c200 mm
Dimension d50 mm

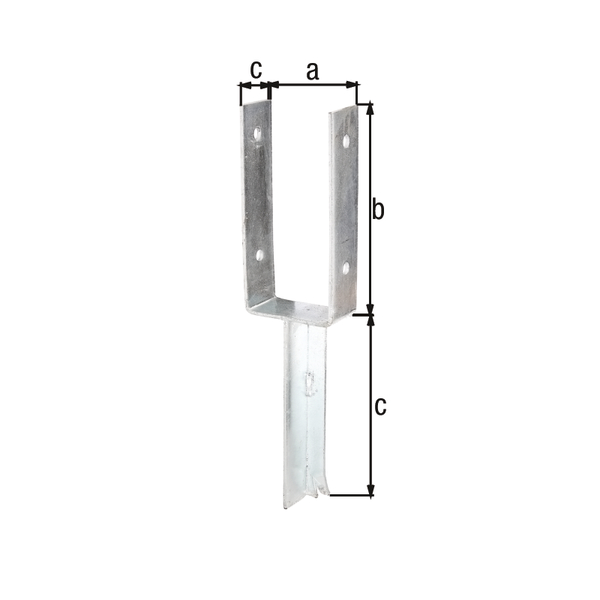

Article-No.216771
Dimension a91 mm
Dimension b200 mm
Dimension c200 mm
Dimension d50 mm
Article-No.216795
Dimension a101 mm
Dimension b200 mm
Dimension c200 mm
Dimension d50 mm

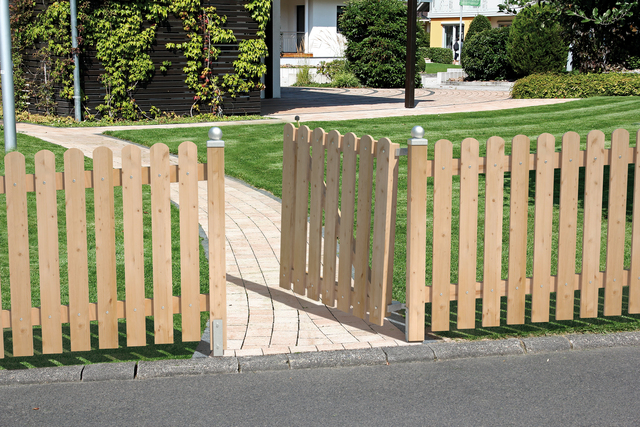

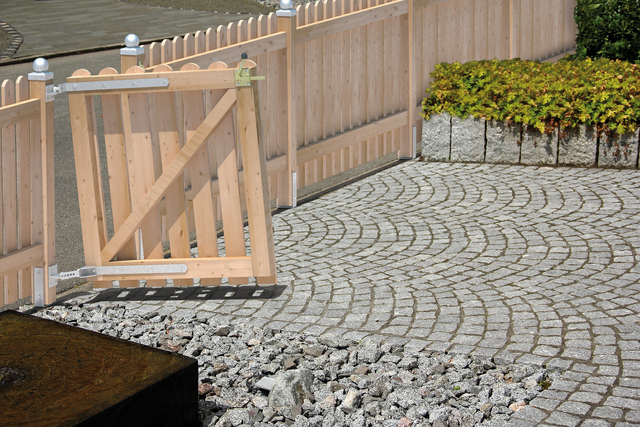

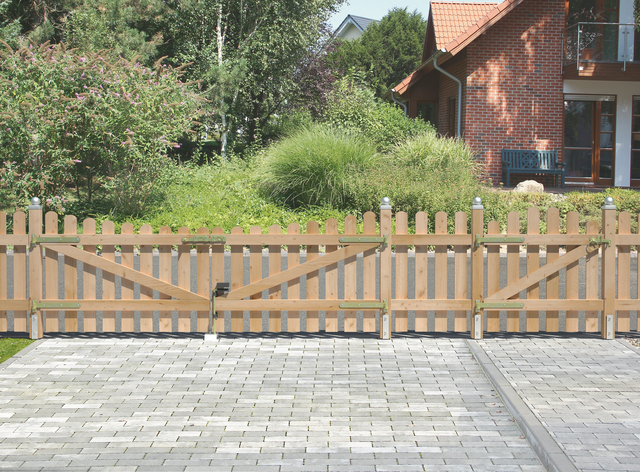

  • Statically suitable for fence heights up to a maximum of 1500 mm with normal post distance. Suitable for timber construction and wooden fences as per the standard value table.

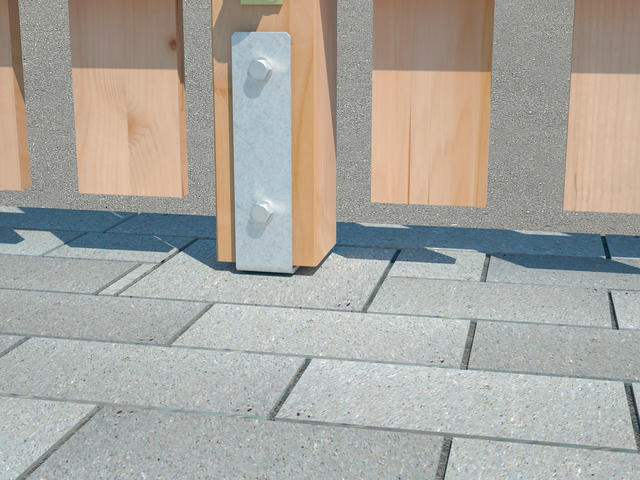

  • The post support leg must be mounted perpendicular to the course of the fence in order to be able to absorb the strong lateral wind forces.
  • Suitable fasteners can be found in the range “Screws and accessories”.
