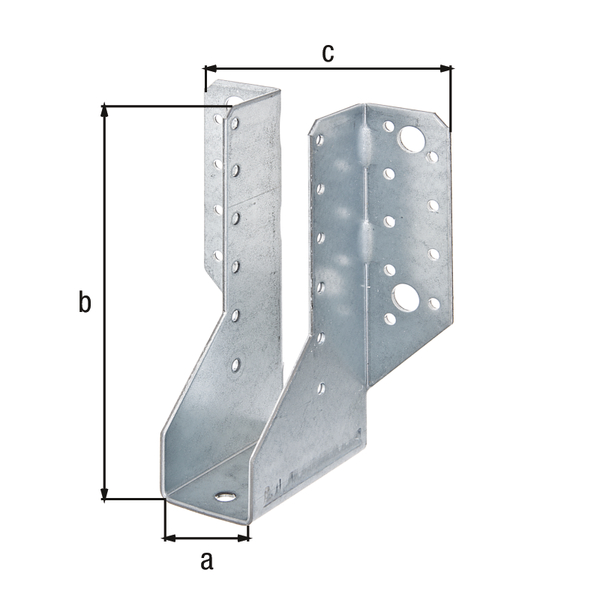

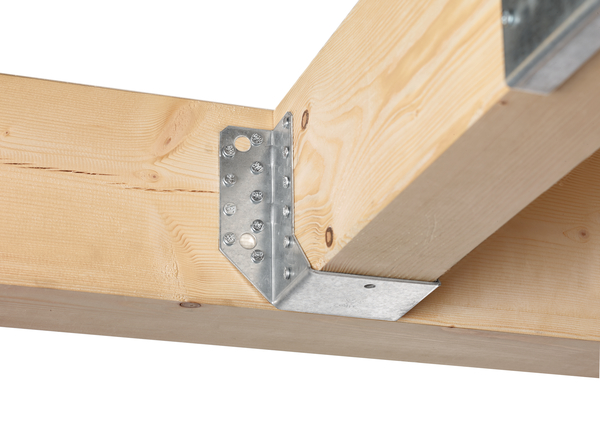

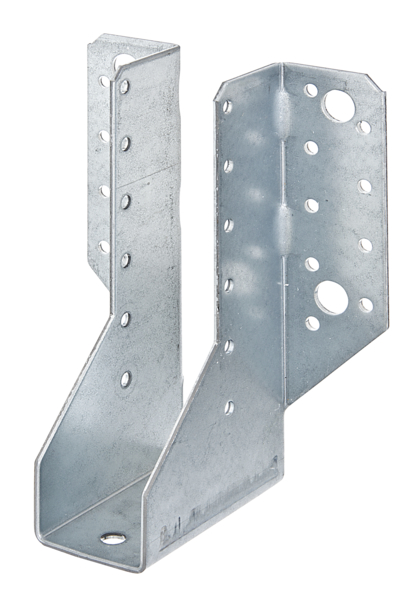

Joist hanger, type A
Art.-No. 335335
- Dimension a:
- 34 mm
- Dimension b:
- 143 mm
- Dimension c:
- 104 mm
- Fastening type:
- ZAUFSCHR
- Material thickness:
- 2 mm
- Quantity x hole Ø:
- 4 x Ø11 mm
- Quantity x hole Ø:
- 30 x Ø5 mm
- Material/surface:
- raw steel, sendzimir galvanised, with CE marking in accordance with ETA-08/0171
- UNIT:
- 25
- PU:
- Piece
- Surface / Colour:
- VERZ
- Material:
- Steel
- Approval:
- Europ.techn.app. ETA-08/0171
- :
- 34 mm
- :
- 143 mm
- :
- 104 mm
- Weight per UQ (kg):
- 0.335 kg
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No.335335
Dimension a34 mm
Dimension b143 mm
Dimension c104 mm
Fastening typeZAUFSCHR

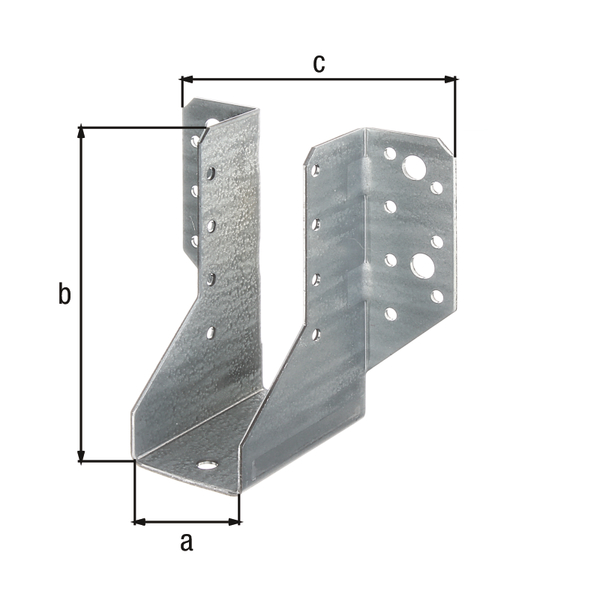

Article-No.334505
Dimension a40 mm
Dimension b110 mm
Dimension c110 mm
Fastening typeZAUFSCHR

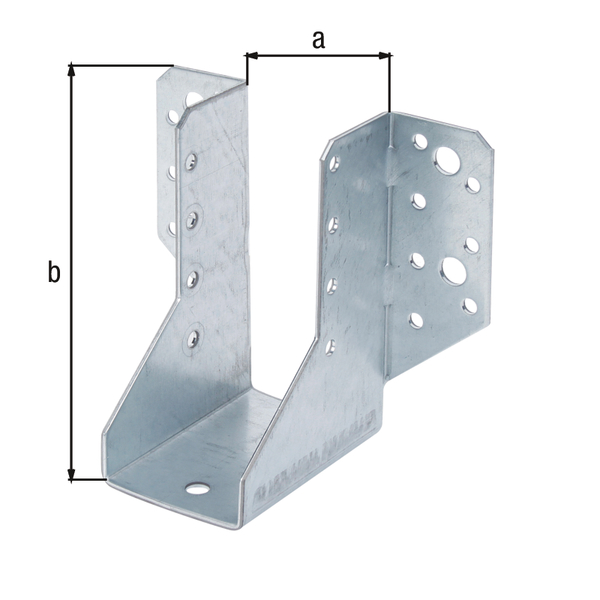

Article-No.335984
Dimension a45 mm
Dimension b110 mm
Dimension c115 mm
Fastening typeZAUFSCHR

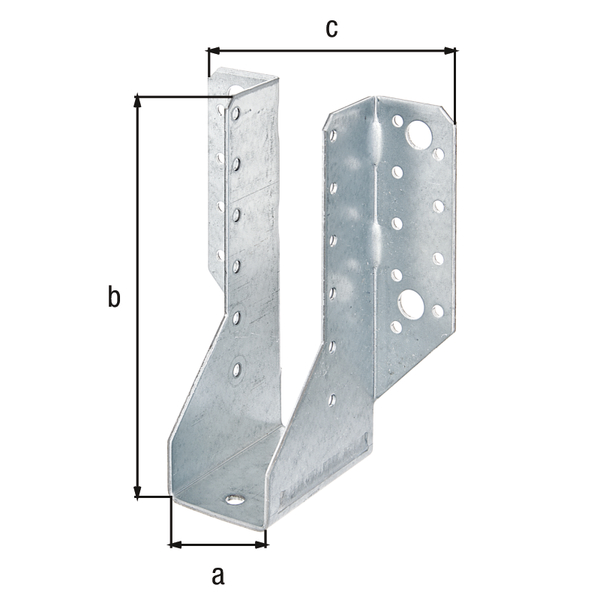

Article-No.353773
Dimension a40 mm
Dimension b140 mm
Dimension c110 mm
Fastening typeZAUFSCHR

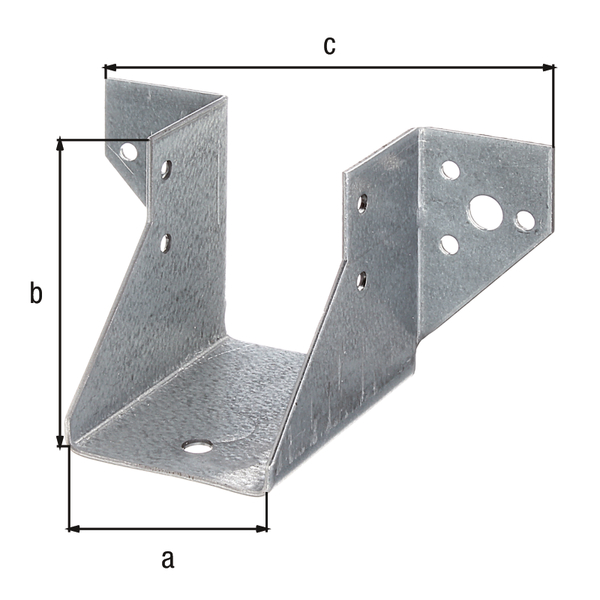

Article-No.353780
Dimension a50 mm
Dimension b68 mm
Dimension c120 mm
Fastening typeZAUFSCHR

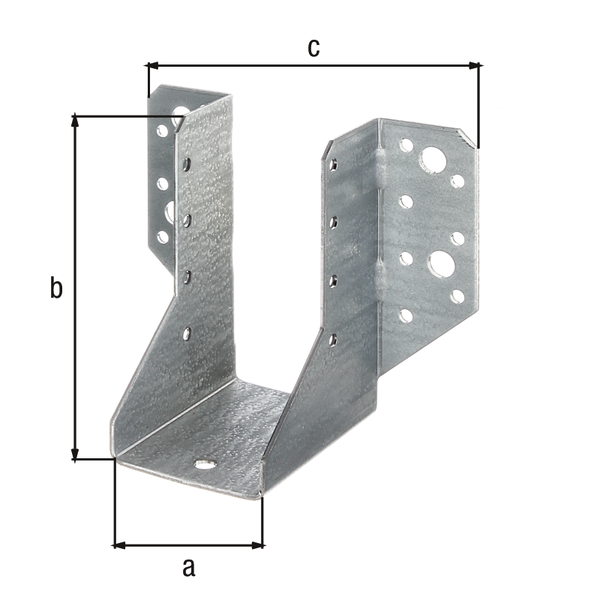

Article-No.334512
Dimension a50 mm
Dimension b105 mm
Dimension c120 mm
Fastening typeZAUFSCHR

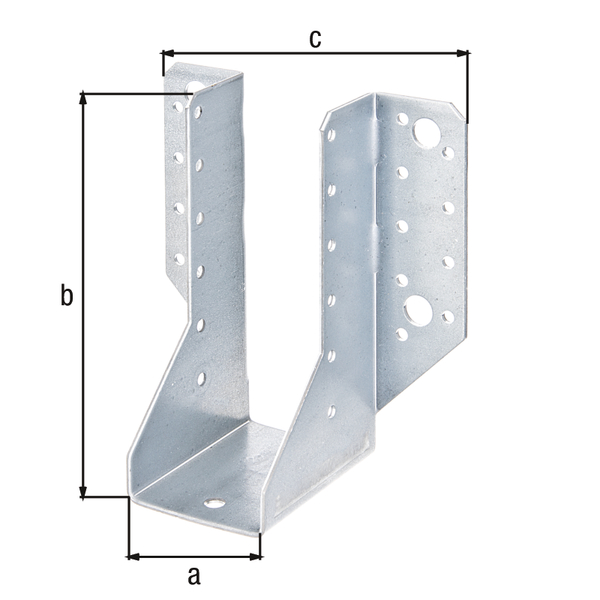

Article-No.335120
Dimension a50 mm
Dimension b135 mm
Dimension c120 mm
Fastening typeZAUFSCHR

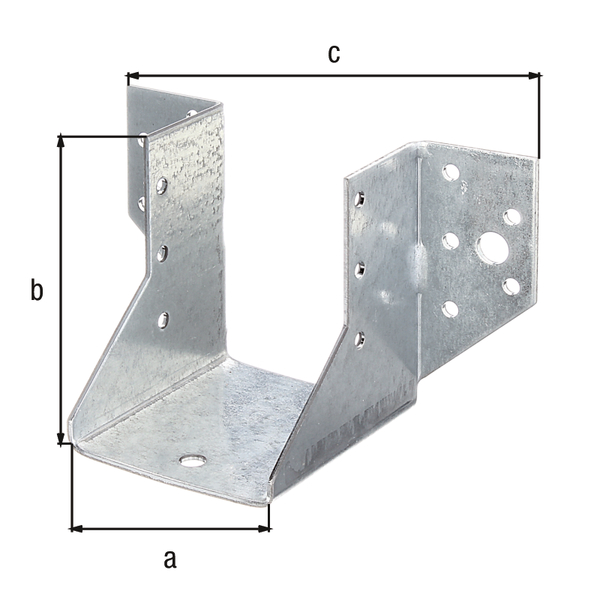

Article-No.354947
Dimension a60 mm
Dimension b80 mm
Dimension c130 mm
Fastening typeZAUFSCHR

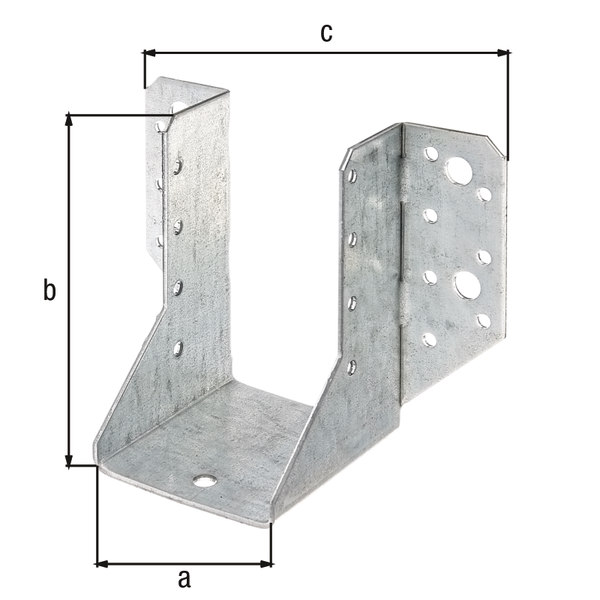

Article-No.331252
Dimension a60 mm
Dimension b100 mm
Dimension c138 mm
Fastening typeZAUFSCHR

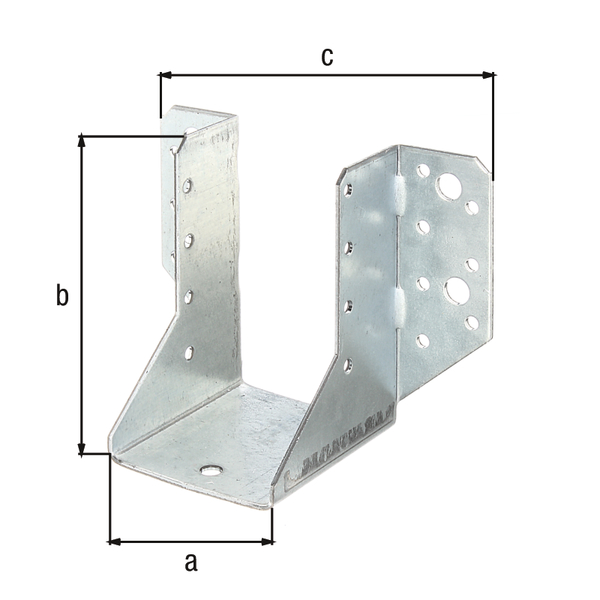

Article-No.331375
Dimension a60 mm
Dimension b100 mm
Dimension c138 mm
Fastening typeZAUFSCHR

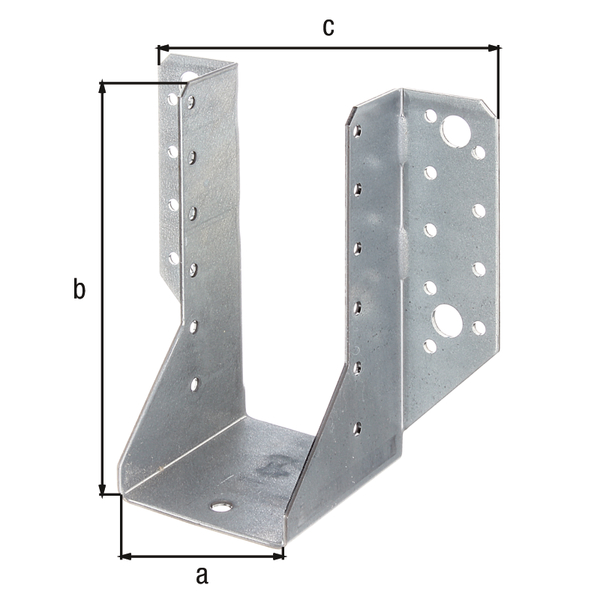

Article-No.353797
Dimension a60 mm
Dimension b130 mm
Dimension c130 mm
Fastening typeZAUFSCHR

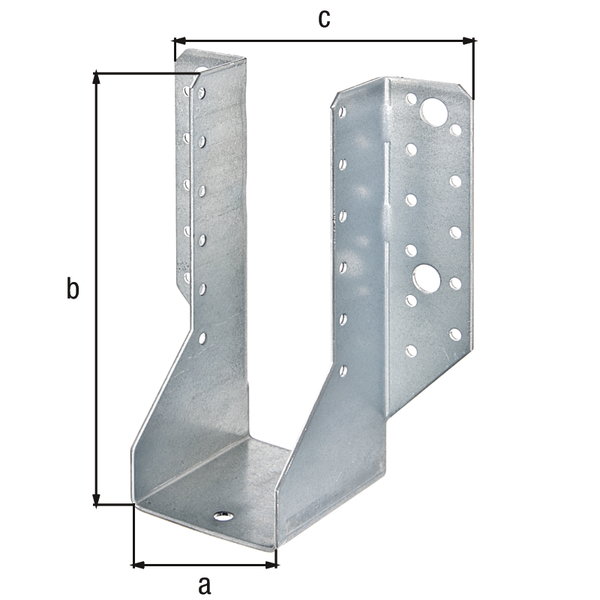

Article-No.353162
Dimension a60 mm
Dimension b160 mm
Dimension c130 mm
Fastening typeZAUFSCHR

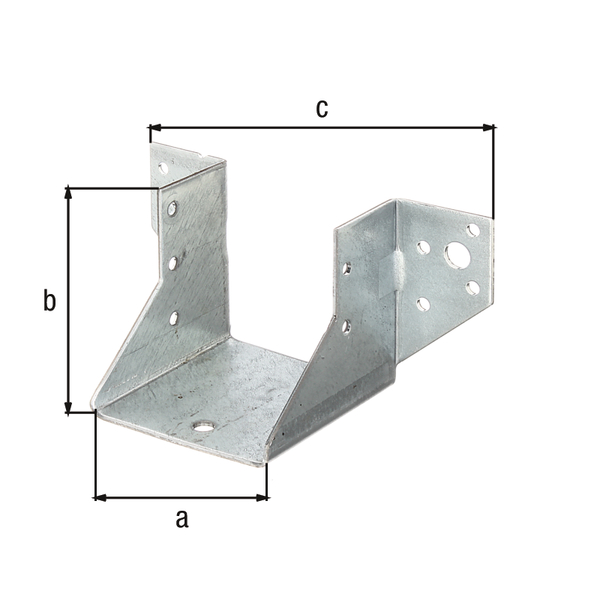

Article-No.334536
Dimension a64 mm
Dimension b65 mm
Dimension c134 mm
Fastening typeZAUFSCHR

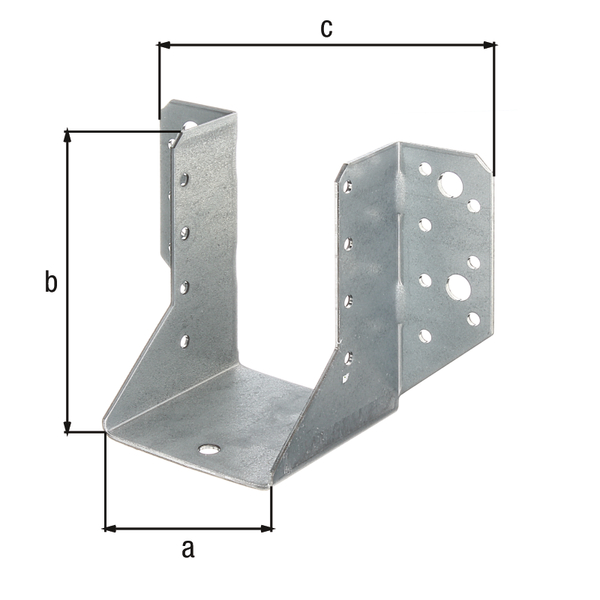

Article-No.334529
Dimension a64 mm
Dimension b98 mm
Dimension c134 mm
Fastening typeZAUFSCHR

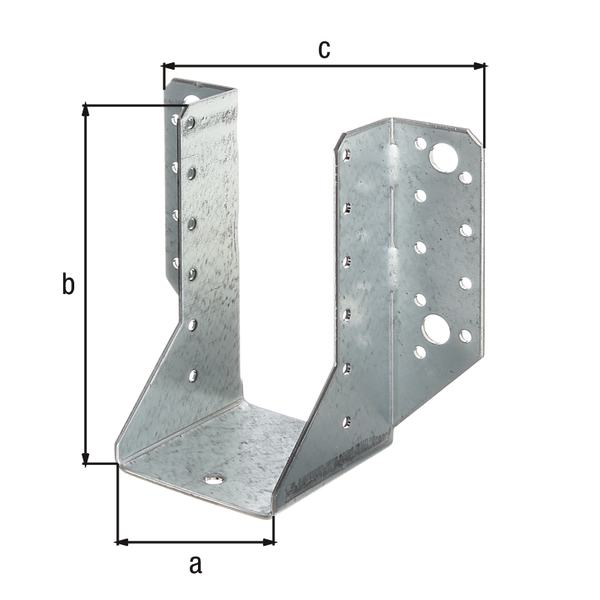

Article-No.335144
Dimension a64 mm
Dimension b128 mm
Dimension c134 mm
Fastening typeZAUFSCHR

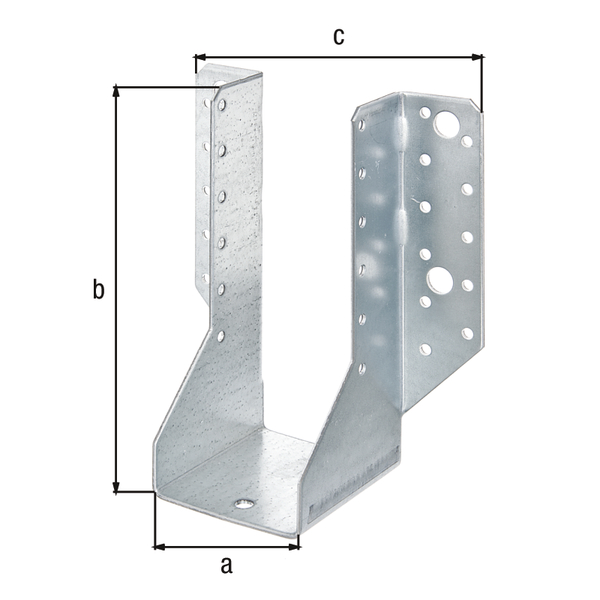

Article-No.353803
Dimension a64 mm
Dimension b158 mm
Dimension c134 mm
Fastening typeZAUFSCHR

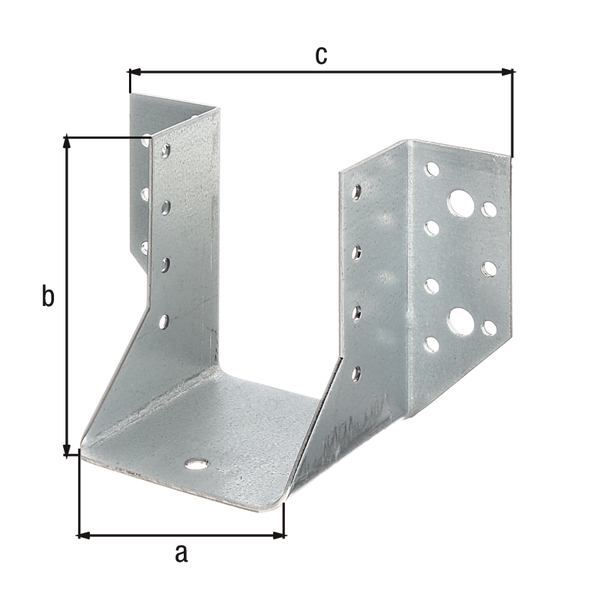

Article-No.333850
Dimension a70 mm
Dimension b95 mm
Dimension c140 mm
Fastening typeZAUFSCHR

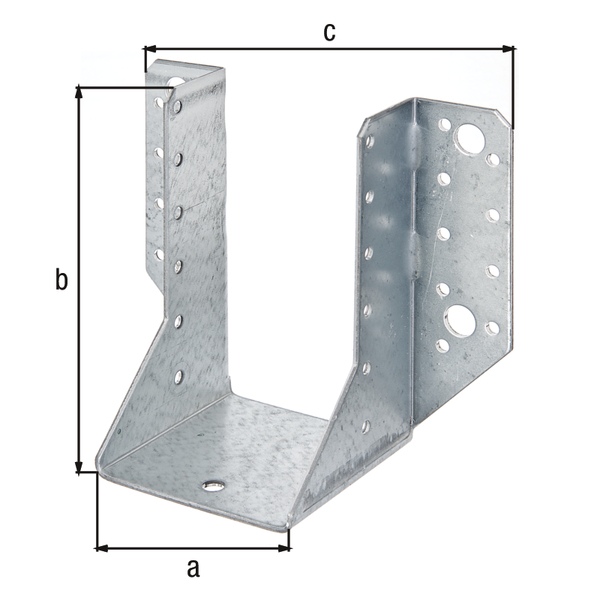

Article-No.335151
Dimension a70 mm
Dimension b125 mm
Dimension c140 mm
Fastening typeZAUFSCHR
Article-No.353827
Dimension a70 mm
Dimension b155 mm
Dimension c140 mm
Fastening typeZAUFSCHR

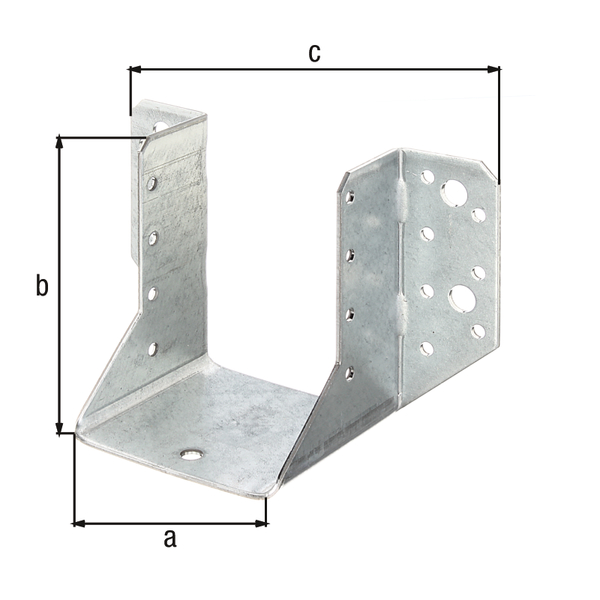

Article-No.335342
Dimension a76 mm
Dimension b90 mm
Dimension c146 mm
Fastening typeZAUFSCHR

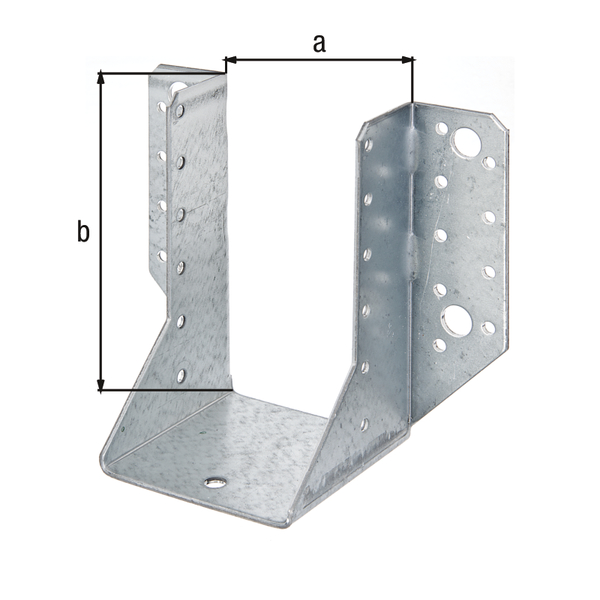

Article-No.335168
Dimension a76 mm
Dimension b152 mm
Dimension c146 mm
Fastening typeZAUFSCHR

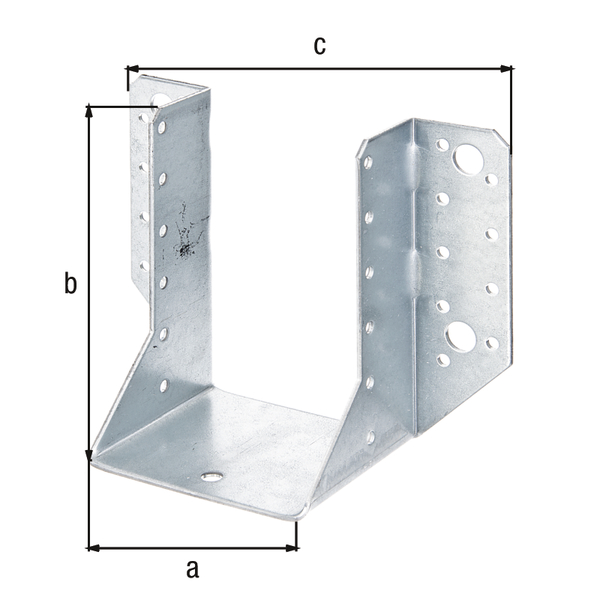

Article-No.331306
Dimension a80 mm
Dimension b120 mm
Dimension c150 mm
Fastening typeZAUFSCHR

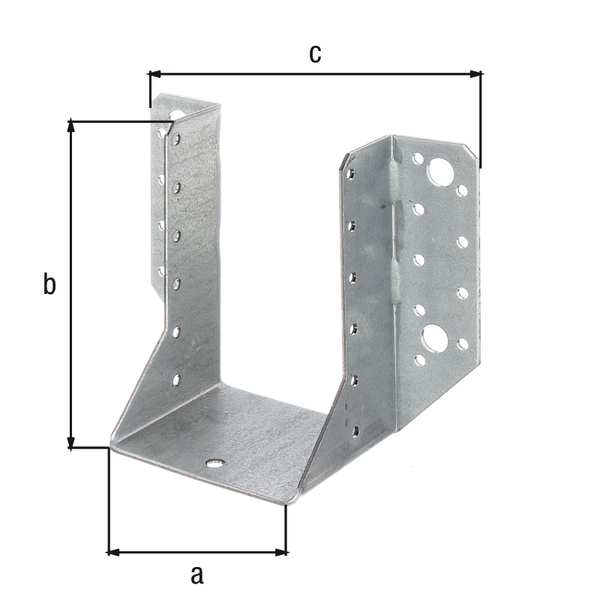

Article-No.331382
Dimension a80 mm
Dimension b120 mm
Dimension c150 mm
Fastening typeZAUFSCHR

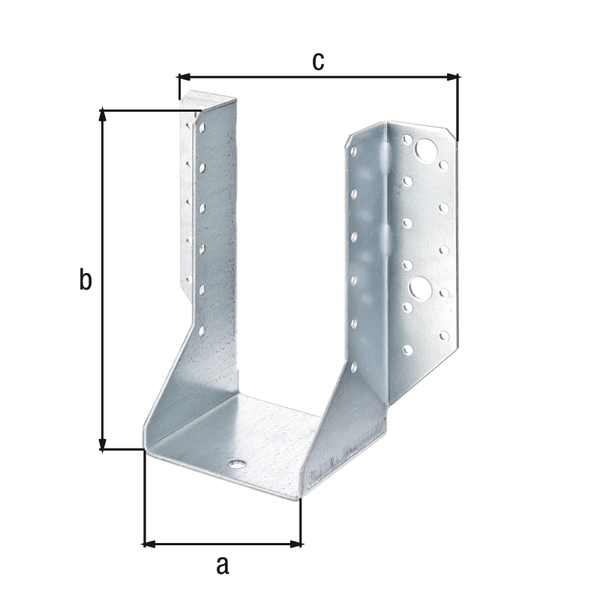

Article-No.335182
Dimension a80 mm
Dimension b150 mm
Dimension c150 mm
Fastening typeZAUFSCHR

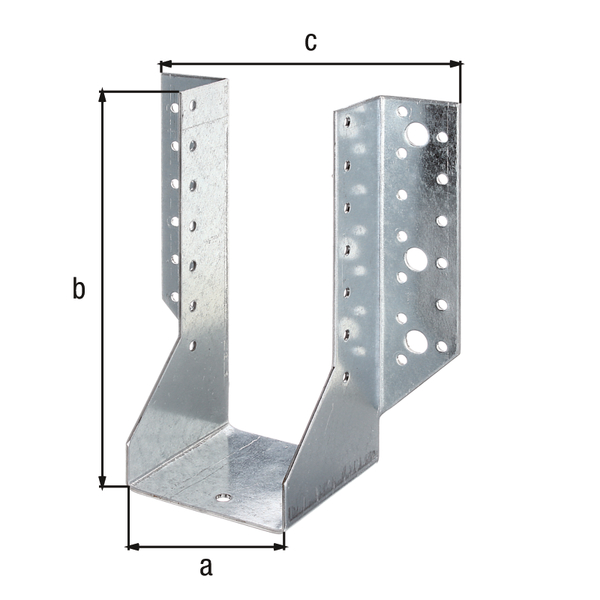

Article-No.354725
Dimension a80 mm
Dimension b180 mm
Dimension c170 mm
Fastening typeZAUFSCHR

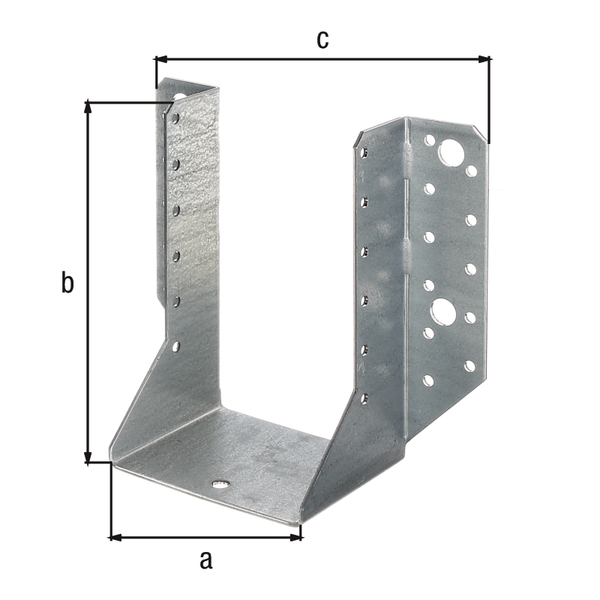

Article-No.331351
Dimension a100 mm
Dimension b140 mm
Dimension c170 mm
Fastening typeZAUFSCHR

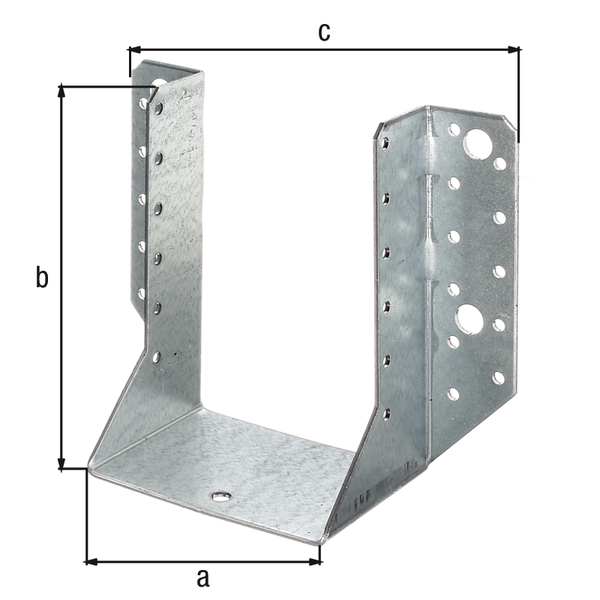

Article-No.331399
Dimension a100 mm
Dimension b140 mm
Dimension c170 mm
Fastening typeZAUFSCHR

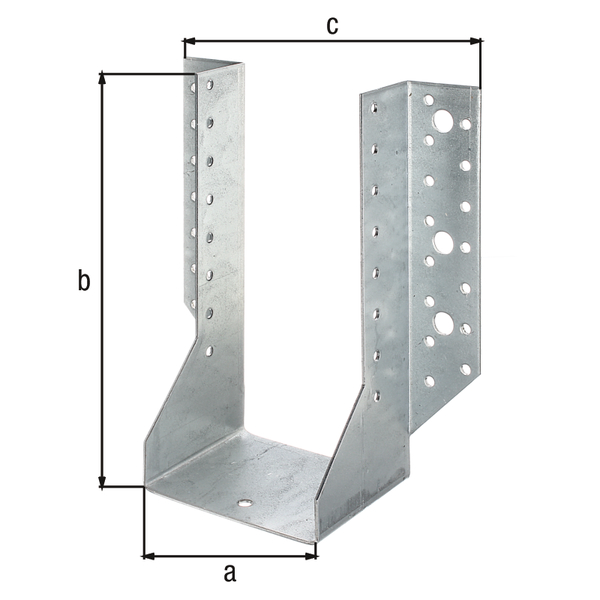

Article-No.335243
Dimension a100 mm
Dimension b200 mm
Dimension c190 mm
Fastening typeZAUFSCHR

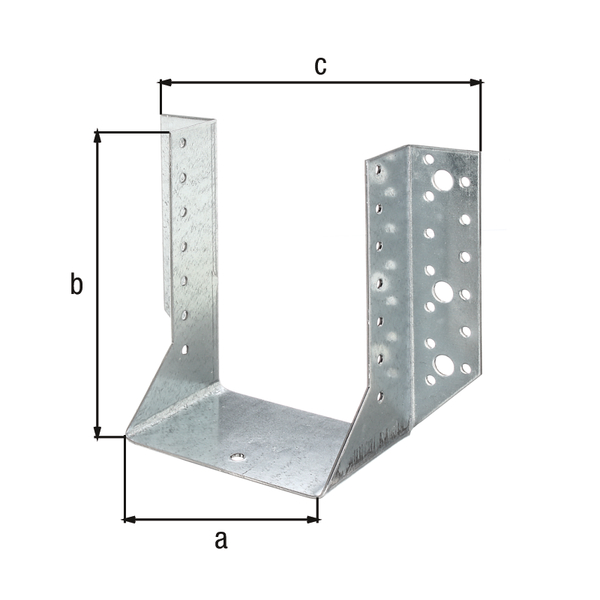

Article-No.331405
Dimension a120 mm
Dimension b160 mm
Dimension c210 mm
Fastening typeZAUFSCHR

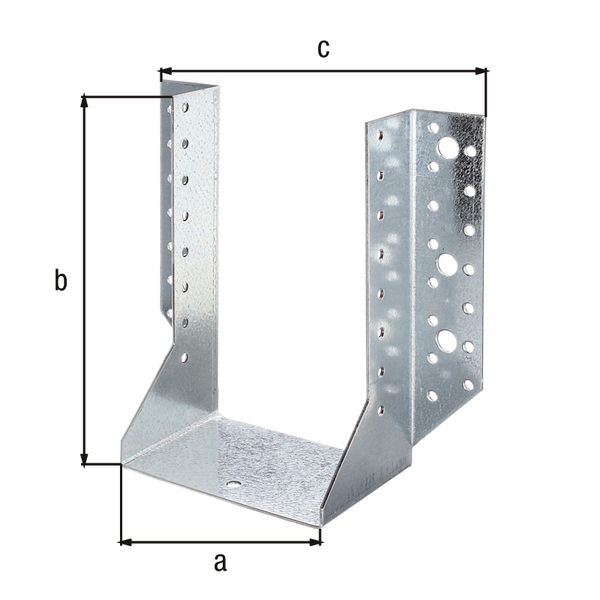

Article-No.354770
Dimension a120 mm
Dimension b190 mm
Dimension c210 mm
Fastening typeZAUFSCHR

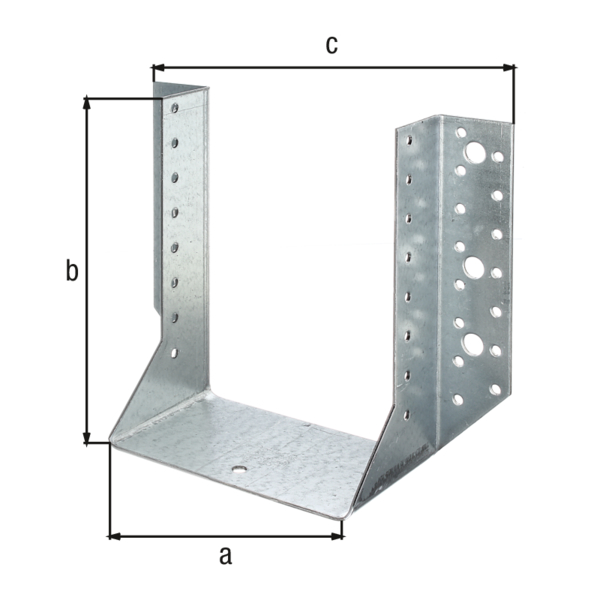

Article-No.331450
Dimension a140 mm
Dimension b180 mm
Dimension c228 mm
Fastening typeZAUFSCHR
