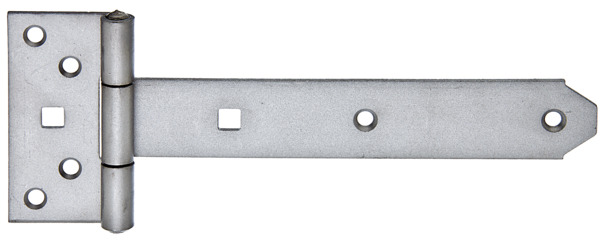

Tee hinge
with riveted pin
Art.-No. 327125

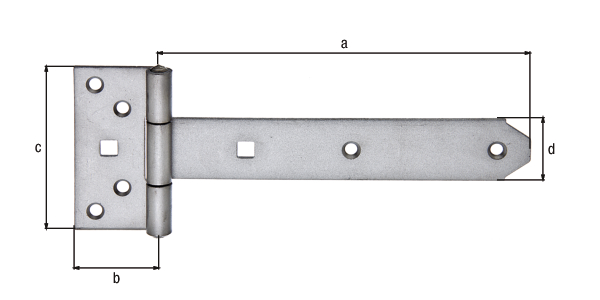

- Dimension a:
- 191.5 mm
- Dimension b:
- 44 mm
- Dimension c:
- 92 mm
- Dimension d:
- 34 mm
- Fastening type:
- for screwing on
- Material thickness:
- 3 mm
- Quantity x hole Ø:
- 6 x Ø6.5 mm
- Quantity x hole (LxW):
- 2 x ( 9 x 9 ) mm
- Material/surface:
- stainless steel
- Systems:
- Band hooks and hooks
- Surface / Colour:
- V2A
- Material:
- Stainless steel
- Belt length:
- 191.5 mm
- Type:
- light
- Weight per UQ (kg):
- 0.293 kg
- Contents Unit:
- 6 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
327125
Dimension a
191.5 mm
Dimension b
44 mm
Dimension c
92 mm
Dimension d
34 mm

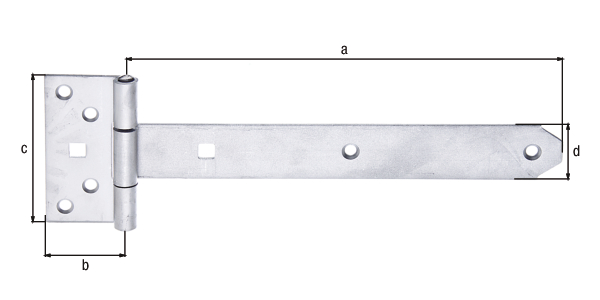

Article-No.
327132
Dimension a
242 mm
Dimension b
44 mm
Dimension c
92 mm
Dimension d
34 mm

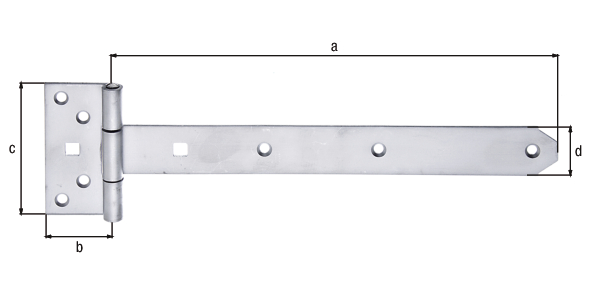

Article-No.
326142
Dimension a
292 mm
Dimension b
44 mm
Dimension c
92 mm
Dimension d
34 mm
- Suitable fasteners can be found in the range “Screws and accessories”.
